Same model may have multiple batches, images only for reference.

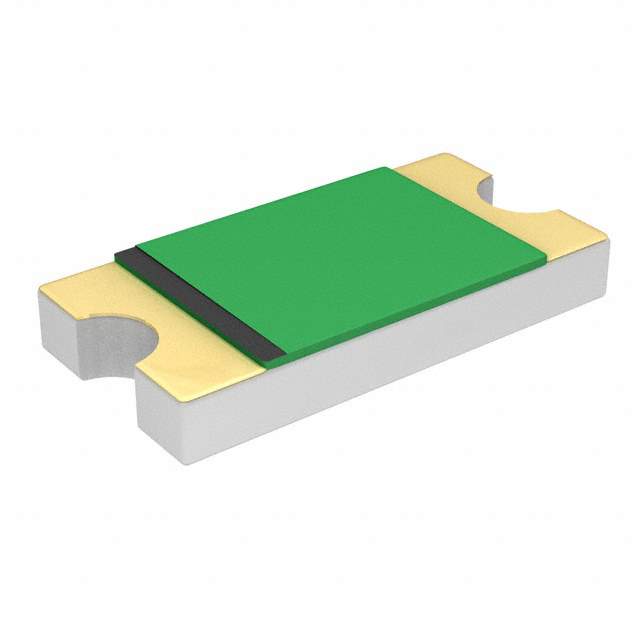

0ZCJ0016FF2E Real Image
Same model may have multiple batches, images only for reference.

0ZCJ0016FF2E

Part No 0ZCJ0016FF2E
Manufacturer Bel Fuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 48V 160MA 1206  /  Polymeric PTC Resettable Fuse 48V 160 mA Ih Surface Mount 1206 (3216 Metric), Concave
Datasheet
0ZCJ0016FF2E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>PTC Resettable Fuses
Mfr Bel Fuse Inc.
Series 0ZCJ
Package Tape & Reel
Type Polymeric
Voltage - Max 48V
Current - Max 10 A
Current - Hold (Ih) (Max) 160 mA
Current - Trip (It) 450 mA
Time to Trip 300 ms
Resistance - Initial (Ri) (Min) 1.1 Ohms
Resistance - Post Trip (R1) (Max) 5 Ohms
Temperature Range - Operating -40°C ~ 85°C
Ratings AEC-Q200
Mounting SMD (SMT)
Package / Case 1206 (3216 Metric), Concave
Dimension 0.128" L x 0.065" W (3.25mm x 1.65mm)
Thickness (Max) 0.030" (0.75mm)
Approval Agency AEC-Q200, cURus, TUV
MSL Level 2A (4 Weeks)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
Other Names 507-1796-2,507-1796-1,507-1796-6
Standard Package 3,000
Win Source Part Number 971193-0ZCJ0016FF2E
Ultra Librarian 3D Model Ultra Librarian 0ZCJ0016FF2E CAD Model

Description

The 0ZCJ0016FF2E is a PTC resettable fuse manufactured by Bel Fuse Inc.

  • Maximum Voltage Rating: 48V
  • Maximum Current Rating: 10A
