Same model may have multiple batches, images only for reference.

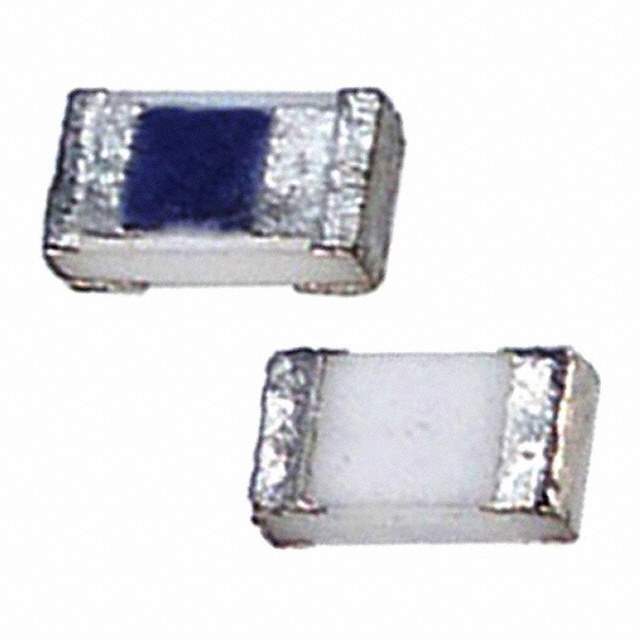

0686-0250-01 Real Image
Same model may have multiple batches, images only for reference.

0686-0250-01

Part No 0686-0250-01
Manufacturer Bel Fuse Inc.
Catalog Fuses
Description FUSE BOARD MNT 250MA 32VAC 63VDC
Datasheet
0686-0250-01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bel Fuse Inc.
Packaging Reel - TR
Status Active
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating 250mA
Voltage Rating - AC 32V
Voltage Rating - DC 63V
Response Time Fast
Mounting SMD (SMT)
Breaking Capacity @ Rated Voltage 35A AC, 50A DC
Nominal Melting - I2t 0.002
Approvals cURus
Temperature Range - Operating -55°C to 125°C
Nominal Cold Resistance 0.7 Ohm
Win Source Part Number 197159-0686-0250-01
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian 0686-0250-01 CAD Model

Description

Product Overview

The 0686-0250-01 component is designed for maximum efficiency in compact designs. Whether in consumer or industrial applications, this component ensures dependable functionality.

Features and Benefits

  • Ultra-compact and lightweight
  • Low power consumption
  • Quick and easy integration

Applications and Projects

  • Portable electronic devices
  • Wearable technology
  • Small-scale automation projects
  • Smart home devices

Choose the 0686-0250-01 for applications where space and power efficiency are paramount.
