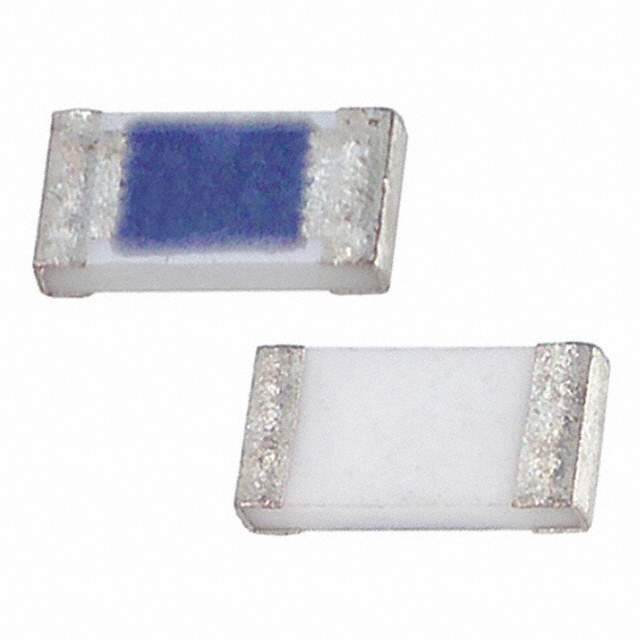

0685-5000-01

Part No 0685-5000-01
Manufacturer Bel Fuse Inc.
Catalog Fuses
Description FUSE BOARD MOUNT 5A 125VAC 63VDC
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bel Fuse Inc.
Packaging Reel - TR
Status Active
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating 5A
Voltage Rating - AC 125V
Voltage Rating - DC 63V
Response Time Fast
Mounting SMD (SMT)
Breaking Capacity @ Rated Voltage 100A AC, 50A DC
Nominal Melting - I2t 1.1
Approvals CSA, cULus
Temperature Range - Operating -55°C to 125°C
Nominal Cold Resistance 0.021 Ohm
Win Source Part Number 197158-0685-5000-01
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 0685-5000-01 CAD Model

Description

Product Overview

The 0685-5000-01 is a state-of-the-art component perfect for high-performance applications. Its superior build quality ensures long life and excellent performance metrics.

Features and Benefits

  • Extended temperature range
  • High efficiency and low power loss
  • Versatile connectivity options

Applications and Projects

  • Data center infrastructure
  • Medical devices
  • Aerospace and defense technology
  • Advanced computing systems

The 0685-5000-01 is designed to meet the demands of cutting-edge technology applications, providing reliability and superior performance.
