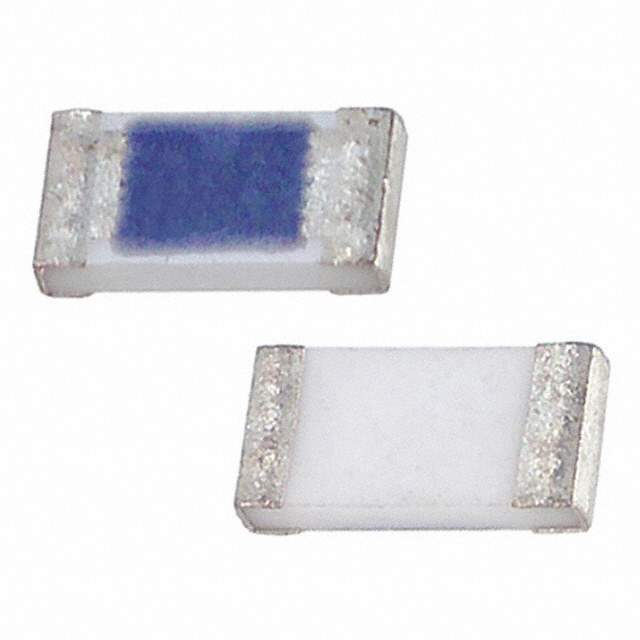

0685-4000-01

Part No 0685-4000-01
Manufacturer Bel Fuse Inc.
Catalog Fuses
Description FUSE BOARD MOUNT 4A 125VAC 63VDC
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bel Fuse Inc.
Packaging Reel - TR
Status Active
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating 4A
Voltage Rating - AC 125V
Voltage Rating - DC 63V
Response Time Fast
Mounting SMD (SMT)
Breaking Capacity @ Rated Voltage 100A AC, 50A DC
Nominal Melting - I2t 0.67
Approvals CSA, cULus
Temperature Range - Operating -55°C to 125°C
Nominal Cold Resistance 0.025 Ohm
Win Source Part Number 197156-0685-4000-01
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 0685-4000-01 CAD Model

Description

Product Overview

The 0685-4000-01 is a highly versatile electronic component designed to cater to a variety of applications. Its robust construction ensures durability, making it a reliable choice for both industrial and consumer electronics projects.

Features and Benefits

  • Compact design for easy integration
  • High durability under various environmental conditions
  • Highly efficient performance that reduces energy consumption

Applications and Projects

  • Automotive electronics
  • Home automation systems
  • Industrial machinery control
  • Consumer electronics

With the 0685-4000-01, you can expect enhanced performance and longevity in your electronic applications.
