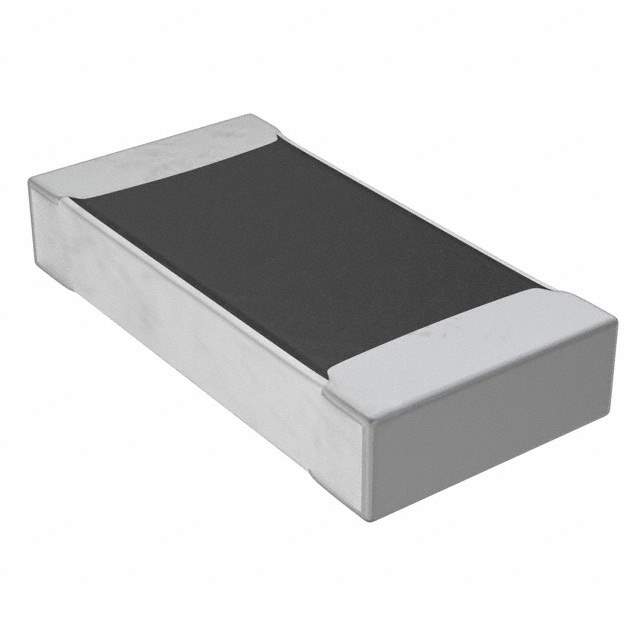

The Bel Fuse 0685-1500-S1 is a fast-acting surface mount fuse designed to provide overcurrent protection in a variety of electronic applications. Bel Fuse is a well-known manufacturer of circuit protection devices, and the 0685 series is recognized for its reliability and performance in safeguarding sensitive components.

Applications

• Power supplies
• Battery chargers
• Hard disk drives
• Solid-state drives (SSDs)
• USB ports

Features

• Fast-acting fuse
• Surface mount design
• Compact size
• High interrupting rating
• RoHS compliant

Benefits

• Provides quick response to overcurrent events, protecting downstream components.
• Suitable for automated assembly processes.
• Saves space on circuit boards.
• Prevents damage from short circuits and overloads.
• Reduces environmental impact through compliance with RoHS standards.

Additional Details

The 0685-1500-S1 is rated for 1.5A and typically has a voltage rating of 32V or 63V (check the datasheet for exact details). The case size is generally a 1206 (3.2mm x 1.6mm) or similar, surface-mount package. It is constructed with ceramic materials and a precise fusible link that melts rapidly when the current exceeds its rated value. Always refer to the product datasheet for specific electrical characteristics, temperature derating curves, and recommended soldering procedures.
