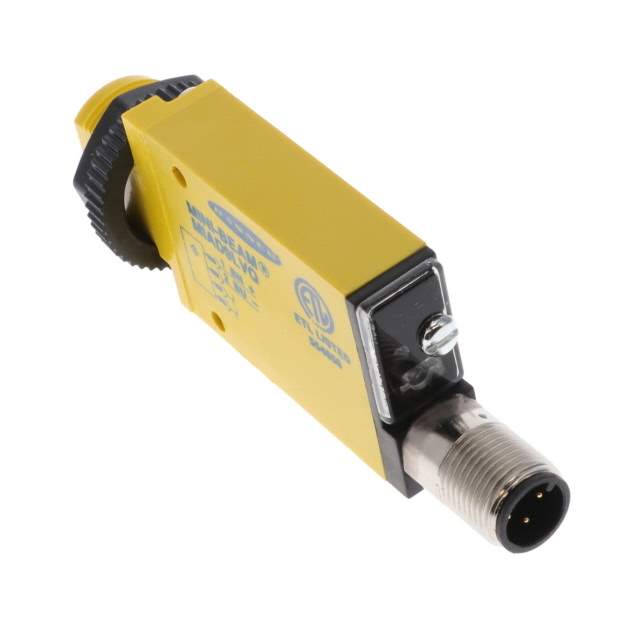

MIAD9LVQ Real Image
Same model may have multiple batches, images only for reference.

MIAD9LVQ

Part No MIAD9LVQ
Manufacturer Banner Engineering Corporation
Catalog Optical Sensors - Photoelectric, Industrial
Description SEN PHOTO 5M NAMUR  /  Retroreflective, NonPolarized Optical Sensor 196.850" (5m) Light-On/Dark-On
Datasheet
MIAD9LVQ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Optical Sensors - Photoelectric, Industrial
Mfr Banner Engineering Corporation
Series MIAD9
Package Box
Sensing Method Retroreflective, NonPolarized
Sensing Distance 196.850" (5m)
Voltage - Supply 5V ~ 15V
Response Time 5ms
Output Configuration Light-On/Dark-On
Light Source Red (650nm)
Connection Method Connector
Ingress Protection NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, 13 IEC IP67
Adjustment Type Adjustable, Potentiometer
Temperature Range - Operating -40°C ~ 70°C
Base Product Number MIAD9
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.49.8000
Other Names 2170-MIAD9LVQ
Standard Package 1
Win Source Part Number 1161905-MIAD9LVQ
Ultra Librarian 3D Model Ultra Librarian MIAD9LVQ CAD Model

Description

The Banner Engineering Corporation MIAD9LVQ Optical Sensor is a high-performance sensor used to detect the presence or absence of an object.

  • Sensing Distance: 196.850 inches
  • Response Time: 5ms
  • Features: Adjustable Potentiometer, Light-On/Dark-On Output Configuration
  • Series: MIAD9
  • Ingress Protection: NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, 13 IEC IP67
