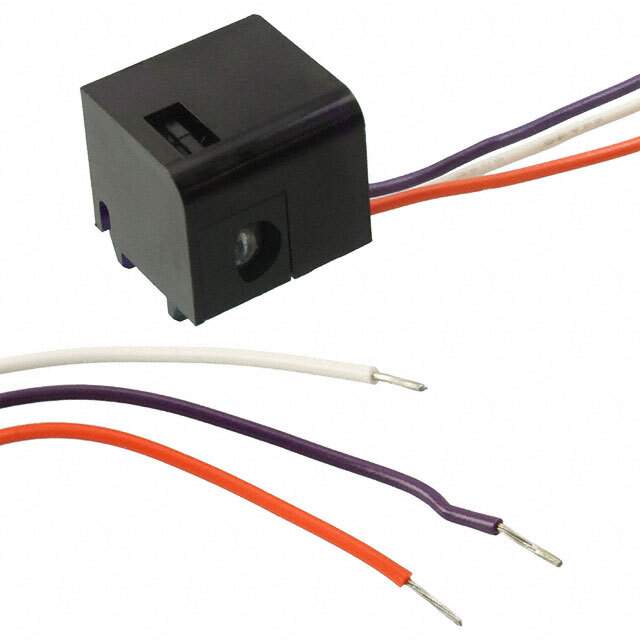

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Sensors, Transducers>Optical Sensors - Photoelectric, Industrial
Mfr TT Electronics/Optek Technology
Series Photologic®
Package Bulk
Sensing Method Reflective
Sensing Distance 0.500" (12.7mm)
Voltage - Supply 4.75V ~ 5.25V
Output Configuration Totem Pole
Light Source Infrared
Connection Method Wire
Adjustment Type Adjustable
Temperature Range - Operating -40°C ~ 85°C
Base Product Number OPB718
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.8000
Other Names 365-1686,OPB718Z-ND
Standard Package 100
Win Source Part Number 1206331-OPB718Z
Ultra Librarian 3D Model Ultra Librarian OPB718Z CAD Model

Description

This electronic component is a sensor/transducer in the Photologic series manufactured by TT Electronics/Optek Technology.

  • Win Source Part Number: 1206331-OPB718Z
  • Sensing Distance: 0.500 inches (12.7mm)
  • Adjustment Type: Adjustable
  • Output Configuration: Totem Pole
  • Sensing Method: Reflective
  • Connection Method: Wire
  • Voltage Supply Range: 4.75V to 5.25V
  • Operating Temperature Range: -40°C to 85°C
  • REACH: Unaffected
  • HTSUS: 8541.49.8000
