Same model may have multiple batches, images only for reference.

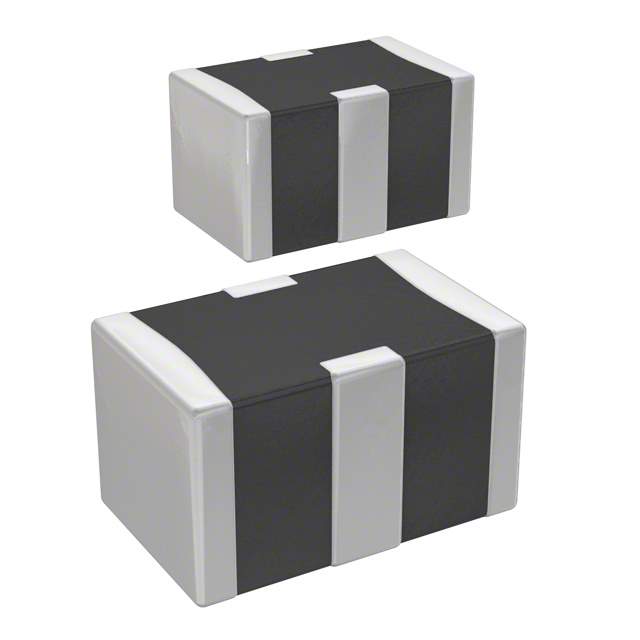

W2F15C4738AT1F Real Image
Same model may have multiple batches, images only for reference.

W2F15C4738AT1F

Part No W2F15C4738AT1F
Manufacturer AVX Corporation
Catalog Feed Through Capacitors
Description CAP FEEDTHRU 0.047UF 50V 0805
Datasheet
W2F15C4738AT1F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer AVX Corporation
Packaging Reel - TR
Status Active
Capacitance 0.047μF
Tolerance -20%, +50%
Voltage Rating 50V
Current 300mA
DC Resistance (DCR) (Max) 600 mOhm
Temperature Range - Operating -55°C to 125°C
Temperature Coefficient X7R
Ratings AEC-Q200
Mounting SMD (SMT)
Dimension 0.079" L x 0.049" W (2.01mm x 1.25mm)
Height (Max) 0.045" (1.14mm)
Win Source Part Number 043670-W2F15C4738AT1F
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian W2F15C4738AT1F CAD Model

Description

The AVX Corporation 043670-W2F15C4738AT1F is a surface-mount ceramic capacitor with a capacitance of 0.047μF and a voltage rating of 50V.

  • Capacitance: 0.047μF
  • Voltage Rating: 50V
  • Tolerance: -20%, +50%
  • Temperature Coefficient: X7R
  • AEC-Q200 Rated: Yes
  • DC Resistance: 600 mOhm
  • Current: 300mA
  • Height: 0.045" (1.14mm)
  • Dimension: 0.079" L x 0.049" W (2.01mm x 1.25mm)
  • Supply and Demand: Balanced
