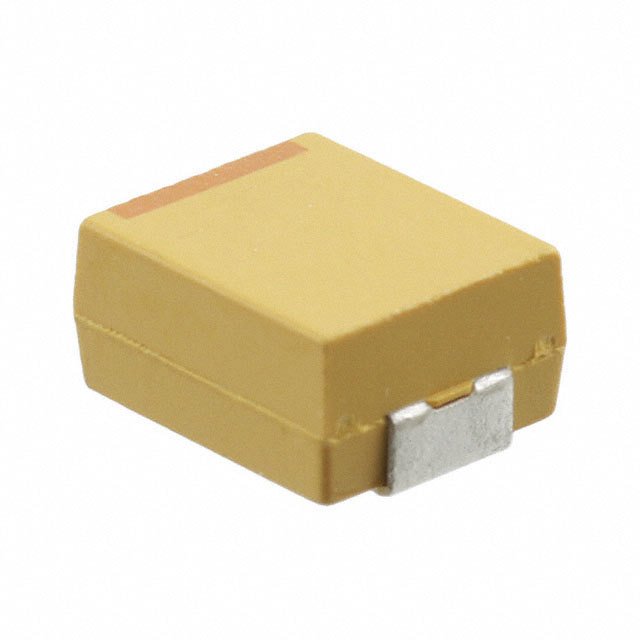

The TPSV687K006R0125 is a surface mount solid electrolytic capacitor manufactured by AVX Corporation. As part of the TPS series, it is engineered for high-performance applications requiring stable capacitance and low ESR. Its molded case allows for efficient automated assembly.

Applications

• DC-DC converters
• Power supply filtering
• Bypass capacitors in digital circuits
• Embedded systems
• Portable electronic devices

Features

• Surface Mount Device (SMD)
• Molded case construction
• Solid electrolytic (Tantalum with polymer cathode)
• Low Equivalent Series Resistance (ESR)
• RoHS Compliant

Benefits

• Improved power efficiency due to low ESR.
• Stable performance across temperature variations.
• Extended operational lifespan in demanding applications.
• Enables compact and efficient circuit designs.
• Reduced voltage ripple in power supplies.

Technical Specifications

The TPSV687K006R0125 features a capacitance of 680µF with a tolerance of ±10%. The rated voltage is 6.3V DC. The ESR is 0.125 Ohms. It is designed to operate within a temperature range of -55°C to +105°C. The physical dimensions are specific to its case size and can be found in the product datasheet. This capacitor utilizes a solid tantalum with polymer cathode dielectric. This ensures a safe failure mode under stressful electrical conditions.
