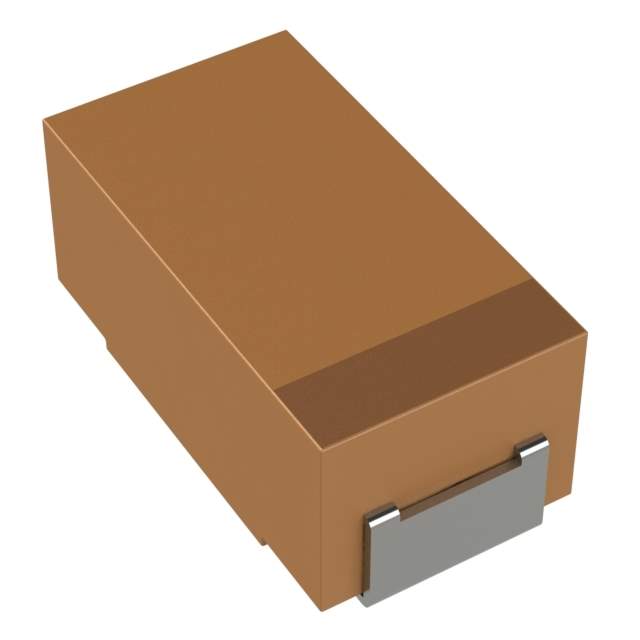

TPSC685K025R0500 Real Image
Same model may have multiple batches, images only for reference.

TPSC685K025R0500

Part No TPSC685K025R0500
Manufacturer AVX Corporation
Catalog Tantalum Capacitors
Description CAP TANT 6.8UF 25V 10% 2312 / Cap Tant Solid 6.8uF 25V C CASE 10% (6 X 3.2 X 2.6mm) Inward L SMD 6032-28 0.5 Ohm 125°C T/R
Datasheet
TPSC685K025R0500 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer AVX Corporation
Series TPS
Packaging Reel package
Capacitance 6.8μF
Tolerance ±10%
Voltage Rating DC 25V
Type Molded
ESR (Equivalent Series Resistance) 500 mOhm
Operating Temperature Range -55°C ~ 125°C
Mounting SMD
Package 2312
Dimension 0.236" L x 0.126" W (6.00mm x 3.20mm)
Height - Seated (Maximum) 0.110" (2.80mm)
Manufacturer Size Code C
Features General
Win Source Part Number 798291-TPSC685K025R0500
Popularity Medium
Supply and Demand Status Limited
Family Name TPS
Introduction Date May 05, 2009
ECCN EAR99
Country of Origin Czech Republic
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian TPSC685K025R0500 CAD Model

Description

The TPSC685K025R0500 is a molded capacitor from AVX Corporation.

  • Series: TPS
  • Package: Reel
  • Capacitance: 6.8μF
  • Tolerance: ±10%
  • ESR: 500 mOhm
  • Voltage Rating DC: 25V
  • Manufacturer Size Code: C
  • Applications: General Purpose
  • Mounting: SMD
  • Package Size: 2312
  • ECCN: EAR99
  • Halogen-Free Compliant: Yes
  • Estimated EOL Date: 2028
