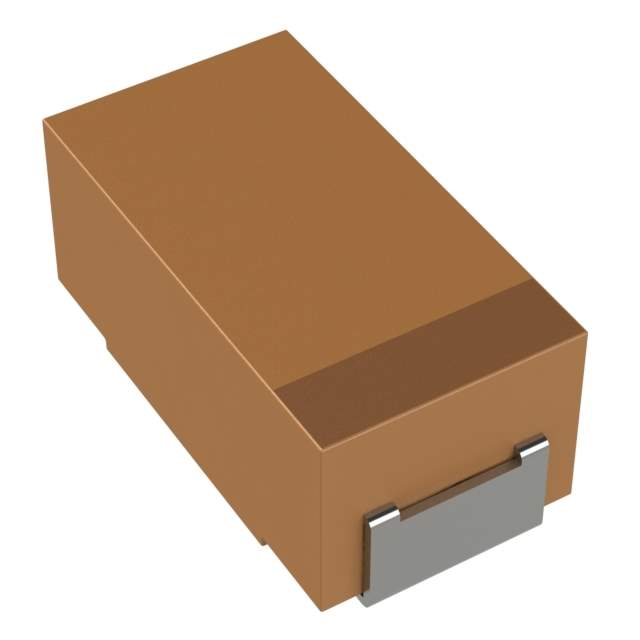

TPSC226M025R0275 Real Image
Same model may have multiple batches, images only for reference.

TPSC226M025R0275

Part No TPSC226M025R0275
Manufacturer AVX Corporation
Catalog Tantalum Capacitors
Description CAP TANT 22UF 25V 20% 2312
Datasheet
TPSC226M025R0275 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer AVX Corporation
Packaging Reel - TR
Status Active
Capacitance 22μF
Tolerance ±20%
Voltage Rating 25V
Type Molded
ESR 275 mOhm
Temperature Range - Operating -55°C to 125°C
Mounting SMD (SMT)
Dimension 0.236" L x 0.126" W (6.00mm x 3.20mm)
Height - Seated (Max) 0.110" (2.80mm)
Manufacturer Size Code C
Features General Purpose
Win Source Part Number 048157-TPSC226M025R0275
Popularity Medium
Supply and Demand Status Sufficient
Application Field Used in Industrial, Power Management, Portable Devices, Consumer Electronics
Ultra Librarian 3D Model Ultra Librarian TPSC226M025R0275 CAD Model

Description

AVX Corporation's 048157-TPSC226M025R0275 is a general-purpose molded capacitor with a capacitance of 22μF and a voltage rating of 25V.

  • Mounting: SMD (SMT)
  • Tolerance: ±20%
  • ESR: 275 mOhm
  • Manufacturer Size Code: C
  • Height: 0.110" (2.80mm)
  • Dimensions: 0.236" L x 0.126" W (6.00mm x 3.20mm)
  • Availability: Limited
  • Commonly Used in: Various electronic applications, including industrial, power management, portable devices, and consumer electronics
