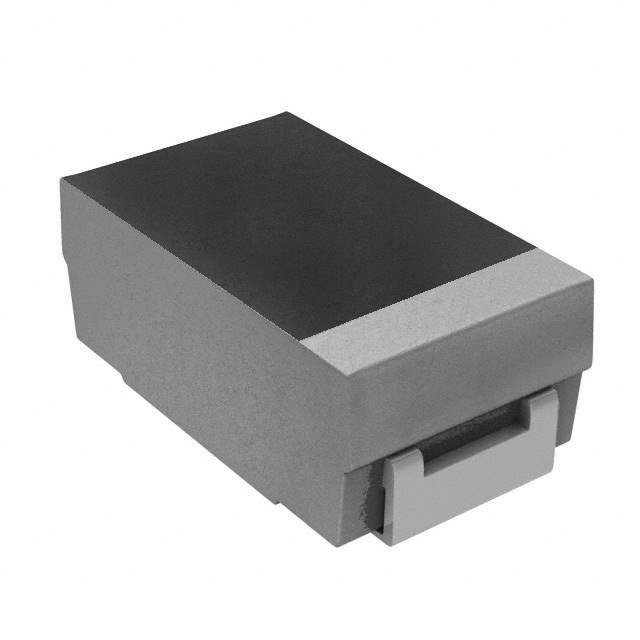

THJD685M035RJN Real Image
Same model may have multiple batches, images only for reference.

THJD685M035RJN

Part No THJD685M035RJN
Manufacturer AVX Corporation
Catalog Tantalum Capacitors
Description CAP TANT 6.8UF 35V 20% 2917 / Cap Tant Solid 6.8uF 35V D CASE 20% (7.3 X 4.3 X 2.9mm) Inward L SMD 7343-31 1.3 Ohm 175°C Automotive T/R
Datasheet
THJD685M035RJN Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer AVX Corporation
Series THJ
Packaging Reel package
Capacitance 6.8μF
Tolerance ±20%
Voltage Rating DC 35V
Type Molded
ESR (Equivalent Series Resistance) 1.3 Ohm
Operating Temperature Range -55°C ~ 175°C
Mounting SMD
Package 2917 (7343 Metric)
Dimension 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Maximum) 0.122" (3.10mm)
Manufacturer Size Code D
Features General
Win Source Part Number 796713-THJD685M035RJN
Popularity Medium
Supply and Demand Status Limited
Family Name THJ
Introduction Date July 07, 2009
ECCN EAR99
Country of Origin El Salvador
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian THJD685M035RJN CAD Model

Description

The AVX Corporation THJ series capacitor is a molded type capacitor from AVX Corporation with a capacitance of 6.8μF.

  • Capacitance: 6.8μF
  • Tolerance: ±20%
  • ESR: 1.3 Ohm
  • Voltage Rating DC: 35V
  • Package Size: 2917 (7343 Metric)
  • Mounting Type: SMD
  • Dimension: 0.287" L x 0.169" W (7.30mm x 4.30mm)
  • Height-Seated Maximum: 0.122" (3.10mm)
  • Estimated EOL Date: 2028
