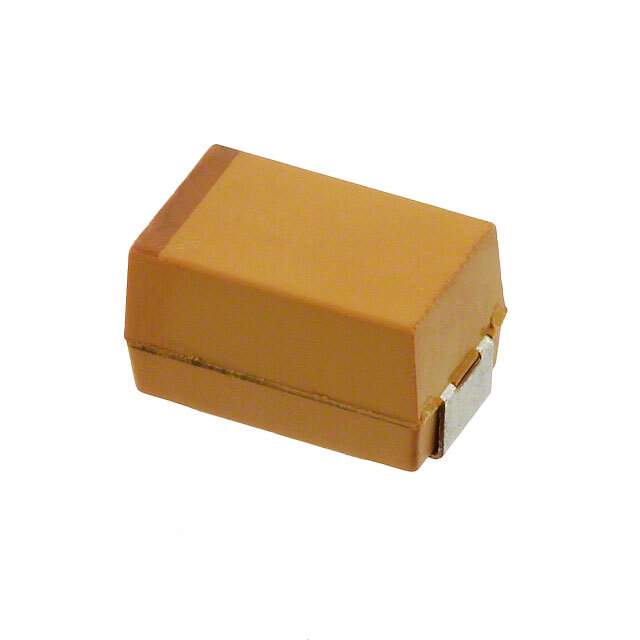

TCJD685M075R0120 Real Image
Same model may have multiple batches, images only for reference.

TCJD685M075R0120

Part No TCJD685M075R0120
Manufacturer AVX Corporation
Catalog Tantalum - Polymer Capacitors
Description CAP TANT POLY 6.8UF 75V 2917
Datasheet
TCJD685M075R0120 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer AVX Corporation
Packaging Reel
Capacitance 6.8μF
Tolerance ±20%
Voltage - Rated 75V
Type Molded
ESR (Equivalent Series Resistance) 120mOhm at 100kHz
Temperature Range - Operating -55°C ~ 105°C
Lifetime at Temp. 2000 Hrs at 105°C
Mounting Style SMD
Manufacturer Package 2917 (7343 Metric)
Parts Dimension 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Maximum) 0.122" (3.10mm)
Manufacturer Size Code D
Features General Purpose
Manufacturer Pack Quantity 1
MSL Level 3 (168 Hours)
Win Source Part Number 735099-TCJD685M075R0120
Popularity Low
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian TCJD685M075R0120 CAD Model

Description

The AVX Corporation molded capacitor is a general-purpose capacitor.

  • Capacitance: 6.8μF
  • Voltage Rating: 75V
  • Mounting: Surface mount device (SMD) using SMT technology
  • Tolerance: ±20%
  • ESR: 120mOhm @ 100kHz
  • Operating Temperature: -55°C to 105°C
  • Size: 0.287" L x 0.169" W (7.30mm x 4.30mm)
  • Height: 0.122" (3.10mm) when seated
  • Popularity: Low-popularity product
  • Supply and Demand Status: Limited supply and demand status
