Same model may have multiple batches, images only for reference.

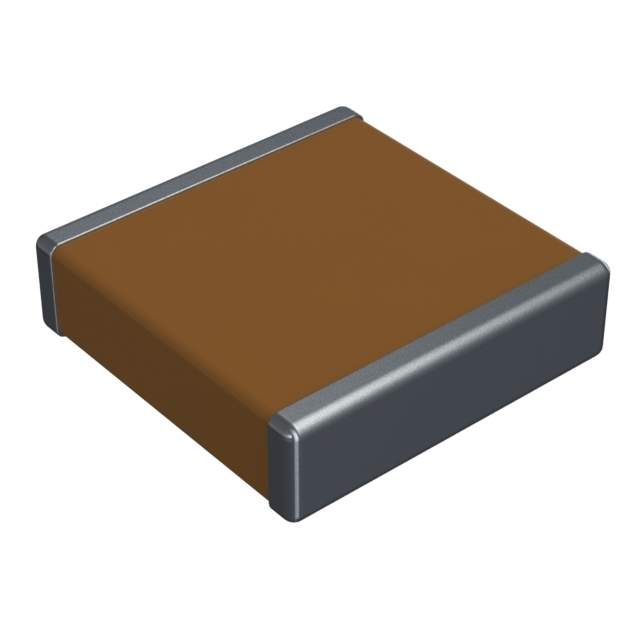

3640AC104MAT3A Real Image
Same model may have multiple batches, images only for reference.

3640AC104MAT3A

Part No 3640AC104MAT3A
Manufacturer AVX Corporation
Catalog Ceramic Capacitors
Description CAP CER 0.1UF 1KV X7R 3640
Datasheet
3640AC104MAT3A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer AVX Corporation
Packaging Reel package
Capacitance 0.1μF
Tolerance ±20%
Voltage Rating DC 1000V (1kV)
Temperature Coefficient X7R
Operating Temperature Range -55°C ~ 125°C
Features High Voltage
Applications General
Mounting Surface Mount, MLCC
Package 3640 (9110 Metric)
Dimension 0.360" L x 0.402" W (9.14mm x 10.20mm)
Thickness (Maximum) 0.100" (2.54mm)
Win Source Part Number 763397-3640AC104MAT3A
Popularity Medium
Supply and Demand Status Limited
Family Name 3640
Introduction Date October 27, 2017
ECCN EAR99
Country of Origin United States of America
Estimated EOL Date 2035
Ultra Librarian 3D Model Ultra Librarian 3640AC104MAT3A CAD Model

Description

The 763397-3640AC104MAT3A MLCC capacitor is manufactured by AVX Corporation.

  • Capacitance: 0.1μF
  • Voltage Rating DC: 1000V (1kV)
  • Tolerance: ±20%
  • Temperature Coefficient: X7R
  • Mounting Type: Surface Mount
  • Package Size: 3640 (9110 Metric)
  • Dimensions: 0.360" L x 0.402" W (9.14mm x 10.20mm)
  • Thickness: 0.100" (2.54mm)
  • Operating Temperature: -55°C to 125°C
  • Applications: General
  • ECCN: EAR99
