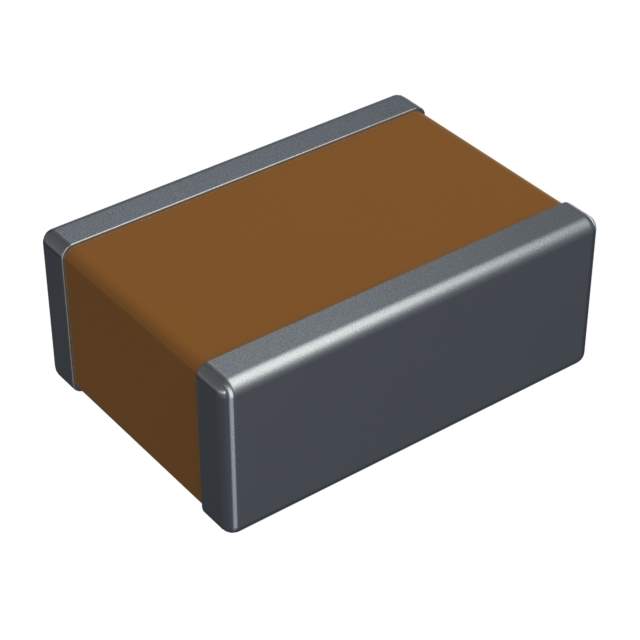

1825AA562JAT1A Real Image
Same model may have multiple batches, images only for reference.

1825AA562JAT1A

Part No 1825AA562JAT1A
Manufacturer AVX Corporation
Catalog Ceramic Capacitors
Description CAP CER 5600PF 1KV NP0 1825
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer AVX Corporation
Packaging Tape and Reel
Capacitance 5600pF
Tolerance ±5%
Voltage - Rated 1000V (1kV)
Temperature Coefficient C0G, NP0
Temperature Range - Operating -55°C ~ 125°C
Features High Voltage
Applications General Purpose
Mounting Style SMT, MLCC
Manufacturer Package 1825 (4564 Metric)
Parts Dimension 0.177" L x 0.252" W (4.50mm x 6.40mm)
Thickness (Maximum) 0.110" (2.80mm)
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Win Source Part Number 736088-1825AA562JAT1A
Popularity Low
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 1825AA562JAT1A CAD Model

Description

The AVX Corporation 736088-1825AA562JAT1A is a high-voltage capacitor that offers a capacitance of 5600pF and a tolerance of ±5%.

  • Rated Voltage: 1000V (1kV)
  • Temperature Range: -55°C to 125°C
  • Package: Tape and Reel
  • Mounting Style: SMT, MLCC
  • Manufacturer Package: 1825 (4564 Metric)
  • Thickness: 0.110" (2.80mm)
  • Pack Quantity: 1000
