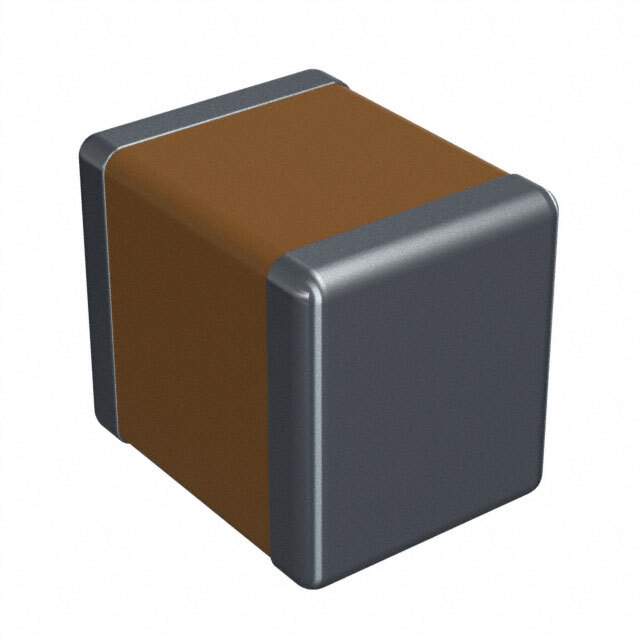

12103D226KAT2A Real Image
Same model may have multiple batches, images only for reference.

12103D226KAT2A

Part No 12103D226KAT2A
Manufacturer AVX Corporation
Catalog Ceramic Capacitors
Description Dual 15A/Single 30A Step-Down Power Module | CAP CER 22UF 25V X5R 1210
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer AVX Corporation
Packaging Reel
Capacitance 22μF
Tolerance ±10%
Voltage - Rated 25V
Temperature Coefficient X5R
Temperature Range - Operating -55°C ~ 85°C
Applications General Purpose
Mounting Style SMT, MLCC
Manufacturer Package 1210 (3225 Metric)
Parts Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Thickness (Maximum) 0.110" (2.79mm)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1121160-12103D226KAT2A
Manufacturer Homepage www.intersil.com/cda/home
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Industrial, Power Management, Consumer Electronics, Portable Devices
Ultra Librarian 3D Model Ultra Librarian 12103D226KAT2A CAD Model

Description

The AVX Corporation 1121160-12103D226KAT2A is a surface mount capacitor with a capacitance of 22μF and a voltage rating of 25V.

  • Manufacturer: AVX Corporation
  • Part: 1121160-12103D226KAT2A
  • Capacitance: 22μF
  • Voltage Rating: 25V
  • Temperature Coefficient: X5R
  • Tolerance: ±10%
  • Mounting Style: SMT, MLCC
  • Package: 1210 (3225 Metric)
  • Applications: General-purpose
  • Dimensions: 0.126" L x 0.098" W (3.20mm x 2.50mm)
  • Popularity: Medium
  • Used in: Industrial, power management, consumer electronics, and portable devices
