Analog Devices Inc. HMC6981LS6 - High Performance Amplifier

The HMC6981LS6 from Analog Devices Inc. is a state-of-the-art GaAs pHEMT MMIC Power Amplifier that delivers exceptional performance and reliability for a wide range of applications. This amplifier is designed to operate between 6 GHz and 18 GHz, providing versatile usage across various frequency bands. It is an ideal solution for users seeking an amplifier for electronic warfare, radar, test instrumentation, and satellite communication systems.

Key Features:

• Frequency Range: The HMC6981LS6 operates over a broad frequency range of 6 GHz to 18 GHz, making it suitable for a multitude of RF and microwave applications.
• High Gain: With a high gain of 21 dB, this amplifier is capable of increasing the power of input signals significantly, ensuring clear and strong signal transmission.
• Output Power: It delivers a saturated output power (Psat) of 37 dBm, which equates to 5 watts, providing robust signal amplification for demanding environments.
• Power Added Efficiency (PAE): The HMC6981LS6 offers a power-added efficiency of 30%, optimizing power consumption and performance.
• Integrated Power Detector: An on-chip power detector simplifies system integration and monitoring, enhancing the overall functionality of the amplifier.

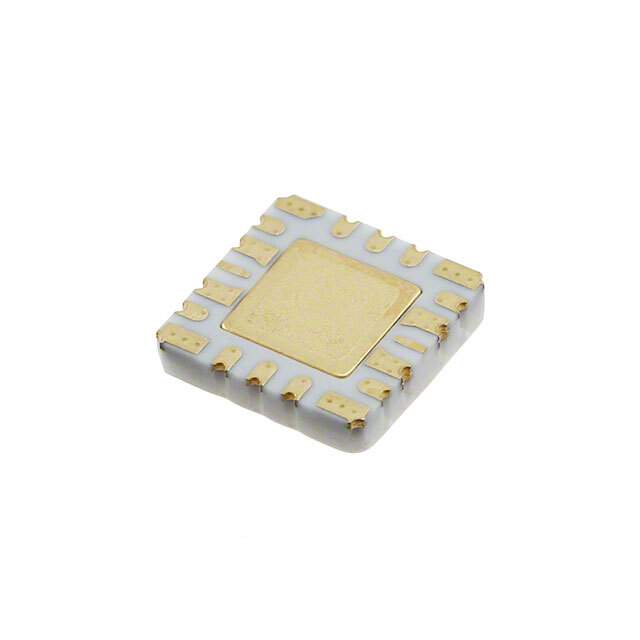

• Robust Design: Housed in a compact 6x6 mm surface mount leadless package, the amplifier is designed to withstand harsh conditions and is suitable for space-constrained applications.

Applications:

• Electronic Warfare Systems
• Radar Systems
• Telecommunications & Satellite Communications
• Test & Measurement Instrumentation
• Commercial & Military Applications

The HMC6981LS6 is fabricated using Analog Devices' proven Gallium Arsenide (GaAs) technology, which ensures high efficiency, excellent linearity, and low noise performance. Its robust design and impressive specifications make it a top choice for professionals seeking a high-quality amplifier capable of handling complex and demanding applications. Analog Devices Inc. is renowned for their expertise in high-performance semiconductor products, and the HMC6981LS6 is yet another example of their commitment to excellence in the field of RF and microwave technology.
