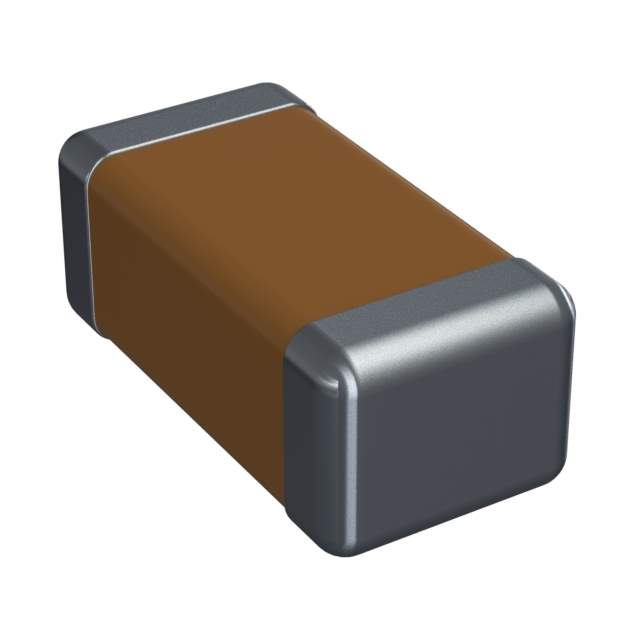

The 12061C104MAT2A is a ceramic capacitor manufactured by AVX Corporation. It belongs to the multilayer ceramic capacitor (MLCC) family, known for their compact size, high capacitance values, and excellent performance characteristics. This particular capacitor has a capacitance of 0.1µF (100nF), a voltage rating of 16V, and a ±20% capacitance tolerance. It utilizes a ceramic dielectric material, specifically the X7R type, which offers stable performance over a wide temperature range.

Applications:

• Bypass Capacitors: Used to filter out unwanted noise and provide a stable voltage supply in electronic circuits.
• Decoupling Capacitors: Placed near integrated circuits to provide localized energy storage and reduce voltage fluctuations.
• Timing Circuits: Employed in timing circuits where stable capacitance is essential for accurate timing.
• Filtering Applications: Used in filters to attenuate unwanted frequency components in signals.

Features:

• High Capacitance Value: 0.1µF capacitance provides significant energy storage.
• Compact Size: 1206 package size allows for high-density circuit designs.
• X7R Dielectric: Offers stable performance over temperature variations.
• Surface Mount Technology (SMT): Designed for automated assembly processes.
• RoHS Compliant: Complies with Restriction of Hazardous Substances directive.

Benefits:

• Stable Performance: X7R dielectric ensures consistent capacitance over a wide temperature range.
• Reduced Noise: Effective bypass and decoupling capabilities minimize noise and voltage fluctuations.
• High Reliability: Ceramic construction provides long-term reliability and durability.
• Space Saving: Compact size allows for efficient use of board space.

Additional Details:

The 12061C104MAT2A has a case size of 1206 (3.2mm x 1.6mm). The X7R dielectric provides a capacitance variation of ±15% over the temperature range of -55°C to +125°C. This capacitor is suitable for reflow soldering processes. Its low equivalent series resistance (ESR) contributes to its high-frequency performance. MLCCs are generally non-polarized, simplifying circuit design. The 16V voltage rating makes it suitable for many low-voltage applications. This capacitor is commonly used in consumer electronics, industrial equipment, and automotive applications.
