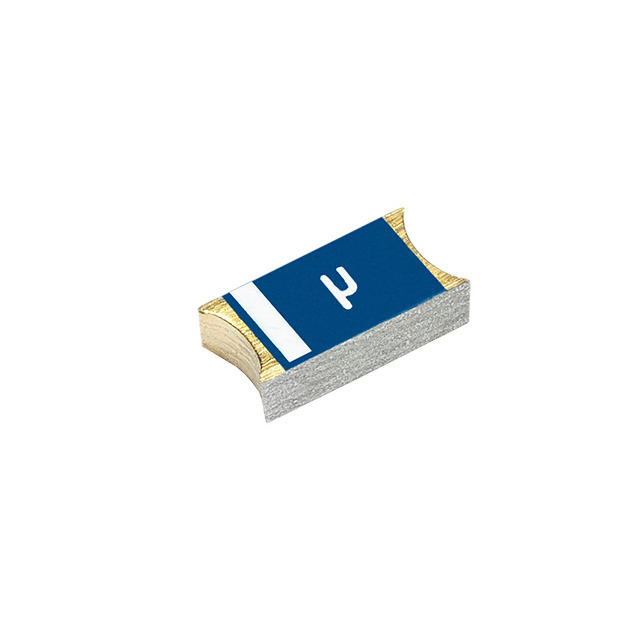

FR05-S1-N-0-110 Fractus
Same model may have multiple batches, images only for reference.

FR05-S1-N-0-110

Part No FR05-S1-N-0-110
Manufacturer Fractus
Catalog RF Antennas
Description MICRO REACH XTEND - 110
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Fractus Antennas S.L.
Packaging Reel
RF Family/Standard 802.15.4, Bluetooth, WiFi
Frequency Group UHF (2GHz ~ 3GHz)
Frequency (Center/Band) 2.45GHz
Frequency Range 2.4GHz ~ 2.5GHz
Antenna Type Chip
Number of Bands 1
VSWR 2
Gain 0.2dBi
Termination Solder
Mounting Style SMD
Height (Maximum) 0.039" (1.00mm)
Applications 802.11b/g/n, Bluetooth, WLAN, Zigbee
Manufacturer Pack Quantity 2,500
MSL Level 3 (168 Hours)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 807907-FR05-S1-N-0-110
Ultra Librarian 3D Model Ultra Librarian FR05-S1-N-0-110 CAD Model

Description

The Fractus Antennas S.L. electronic component has a part number of 807907-FR05-S1-N-0-110.

  • Mounting Style: Surface Mount
  • Packaging: Reel
  • Termination: Solder
  • Applications: 802.11b/g/n, Bluetooth, WLAN, and Zigbee
  • Frequency Range: 2.4GHz ~ 2.5GHz
  • Frequency Group: UHF (2GHz ~ 3GHz)
  • Frequency (Center/Band): 2.45GHz
  • Gain: 0.2dBi
  • VSWR: 2
  • RF Family/Standard: 802.15.4, Bluetooth, WiFi
  • Popularity: Medium
  • Supply and Demand Status: Balanced
