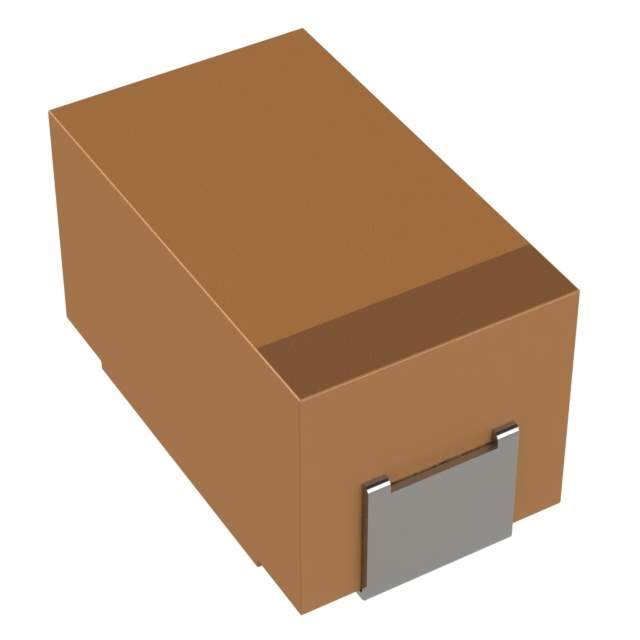

TPSE687K006R0100 Real Image
Same model may have multiple batches, images only for reference.

TPSE687K006R0100

Part No TPSE687K006R0100
Manufacturer AVX Corp/Kyocera Corp
Catalog Tantalum Capacitors
Description CAP TANT 680UF 10% 6.3V 2917 / 680 µF Molded Tantalum Capacitors 6.3 V 2917 (7343 Metric) 100mOhm
Datasheet
TPSE687K006R0100 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Tantalum Capacitors
Mfr KYOCERA AVX
Series TPS
Package Tape & Reel
Capacitance 680 µF
Tolerance ±10%
Voltage - Rated 6.3 V
Type Molded
ESR (Equivalent Series Resistance) 100mOhm
Temperature Range - Operating -55°C ~ 125°C
Mounting SMD (SMT)
Package / Case 2917 (7343 Metric)
Dimension 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) 0.169" (4.30mm)
Manufacturer Size Code E
Features General Purpose
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.21.0050
Other Names TPSE687K006R0100-ND,478-9259-6,478-9259-2,478-9259-1
Standard Package 400
Win Source Part Number 962271-TPSE687K006R0100
Ultra Librarian 3D Model Ultra Librarian TPSE687K006R0100 CAD Model

Description

The KYOCERA AVX 962271-TPSE687K006R0100 is a tantalum capacitor with a capacitance of 680 µF and a voltage rating of 6.3V.

  • Capacitance: 680 µF
  • Voltage Rating: 6.3V
  • Tolerance: ±10%
  • ESR: 100mOhm
  • Series: TPS
  • Application: General Purpose
  • Component Type: Molded
  • Packaging: Tape & Reel
  • Height (Seated): 0.169" (4.30mm)
  • Lead Spacing: No
  • Mounting Type: SMD (SMT)
  • Package/Case: 2917 (7343 Metric)
  • Operating Temperature: -55°C to 125°C
  • Dimensions: 0.287" L x 0.169" W (7.30mm x 4.30mm)
  • ECCN: EAR99
  • REACH: Not Affected
