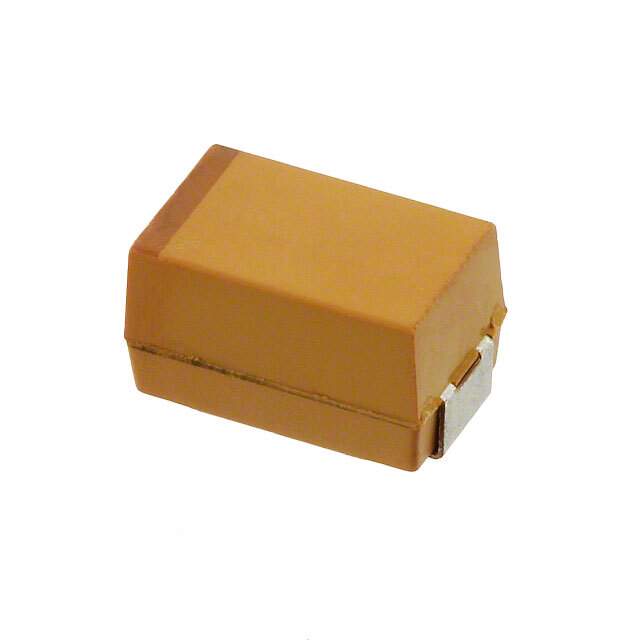

Same model may have multiple batches, images only for reference.

TCJC226M025R0100

Name: TCJC226M025R0100
Brand: AVX Corp/Kyocera Corp
SKU: 1184740
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TCJC226M025R0100
Manufacturer	AVX Corp/Kyocera Corp
Catalog	Tantalum - Polymer Capacitors
Description	CAP TANT POLY 22UF 25V 2312 / 22 µF Molded Tantalum Polymer Capacitor 25 V 2312 (6032 Metric) 100mOhm @ 100kHz
Datasheet	TCJC226M025R0100 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Tantalum - Polymer Capacitors
Mfr	KYOCERA AVX
Series	TCJ
Package	Tape & Reel
Capacitance	22 µF
Tolerance	±20%
Voltage - Rated	25 V
Type	Molded
ESR (Equivalent Series Resistance)	100mOhm @ 100kHz
Temperature Range - Operating	-55°C ~ 105°C
Lifetime @ Temp.	2000 Hrs @ 105°C
Mounting	SMD (SMT)
Package / Case	2312 (6032 Metric)
Dimension	0.236" L x 0.126" W (6.00mm x 3.20mm)
Height - Seated (Max)	0.110" (2.80mm)
Manufacturer Size Code	C
Features	General Purpose
MSL Level	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.21.0050
Other Names	478-6632-2,478-6632-1,478-6632-6
Standard Package	500
Win Source Part Number	1184740-TCJC226M025R0100
Ultra Librarian 3D Model	Ultra Librarian TCJC226M025R0100 CAD Model

Alternative Products

Description

The KYOCERA AVX TCJC226M025R0100 is a Tantalum - Polymer Capacitor.

Capacitance: 22 µF
Voltage Rating: 25V
Tolerance: ±20%
ESR (Equivalent Series Resistance): 100mOhm @ 100kHz
Package/Case: 2312 (6032 Metric)
Temperature Range: -55°C to 105°C
Type: Molded
Purpose: General Purposes
REACH Status: Unaffected
ECCN: EAR99
