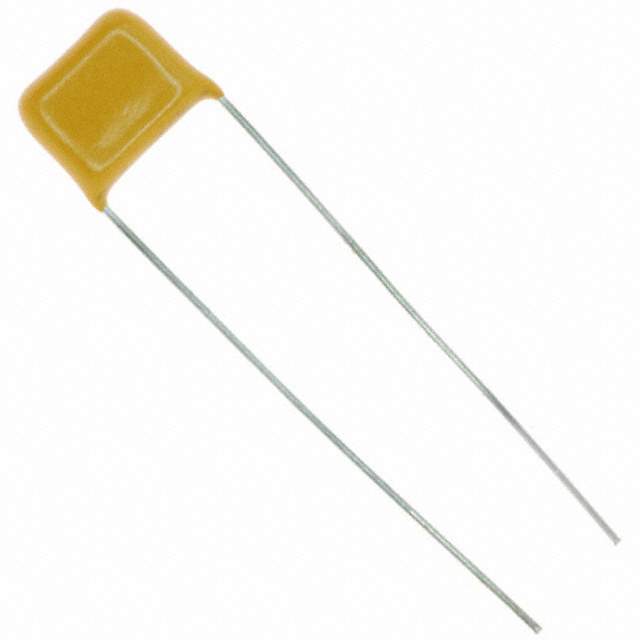

SV02AC472KAR Real Image
Same model may have multiple batches, images only for reference.

SV02AC472KAR

Part No SV02AC472KAR
Manufacturer AVX Corp/Kyocera Corp
Catalog Ceramic Capacitors
Datasheet
SV02AC472KAR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr KYOCERA AVX
Series SV
Package Bulk
Capacitance 4700 pF
Tolerance ±10%
Voltage - Rated 1000V (1kV)
Temperature Coefficient X7R
Temperature Range - Operating -55°C ~ 125°C
Features High Voltage
Applications General Purpose
Mounting Type Through Hole
Package / Case Radial
Dimension 0.320" L x 0.200" W (8.13mm x 5.08mm)
Height - Seated (Max) 0.280" (7.11mm)
Lead Spacing 0.220" (5.59mm)
Lead Style Straight
Other Names 478-4040,Q9010037
Standard Package 300
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0060
Win Source Part Number 1302920-SV02AC472KAR
Ultra Librarian 3D Model Ultra Librarian SV02AC472KAR CAD Model

Description

The KYOCERA AVX SV02AC472KAR is a ceramic capacitor with a capacitance of 4700 pF and a voltage rating of 1000V (1kV).

  • Capacitance: 4700 pF
  • Voltage Rating: 1000V (1kV)
  • Tolerance: ±10%
  • Temperature Coefficient: X7R
  • Series: SV
  • Category: Ceramic Capacitors
  • Package: Radial
  • Height (Seated): 0.280" (7.11mm)
  • Lead Spacing: 0.220" (5.59mm)
  • Lead Style: Straight
  • Operating Temperature Range: -55°C to 125°C
  • REACH: Unaffected
  • ECCN: EAR99
