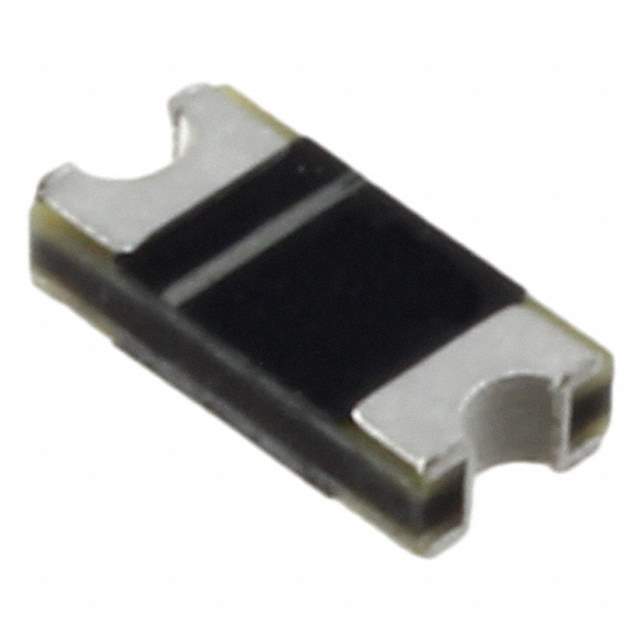

SD2010S040S1R0 Real Image
Same model may have multiple batches, images only for reference.

SD2010S040S1R0

Part No SD2010S040S1R0
Manufacturer AVX Corp/Kyocera Corp
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 40V 1A SMA / Diode Schottky 40 V 1A (DC) Surface Mount 2010/DO-214AC
Datasheet
SD2010S040S1R0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr KYOCERA AVX
Package Tape & Reel
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 40 V
Current - Average Rectified (Io) 1A (DC)
Voltage - Forward (Vf) (Max) @ If 500 mV @ 1 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 200 µA @ 40 V
Mounting SMD (SMT)
Package / Case 2-SMD, No Lead
Supplier Device Package 2010/DO-214AC
Operating Temperature - Junction -55°C ~ 125°C
Base Product Number SD2010S040S1R0
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names 478-7812-2,478-7812-1,478-7812-6
Standard Package 3,000
Win Source Part Number 1054655-SD2010S040S1R0
Ultra Librarian 3D Model Ultra Librarian SD2010S040S1R0 CAD Model

Description

The 1054655-SD2010S040S1R0 is a fast recovery diode that is categorized as a discrete semiconductor product.

  • Voltage Rating: 40V
  • Current Rating: 1A
  • Diode Type: Schottky
  • Mounting: SMD (SMT) technology
  • REACH: Not affected
  • ECCN: EAR99
  • Operating Temperature Range: -55°C to 125°C
