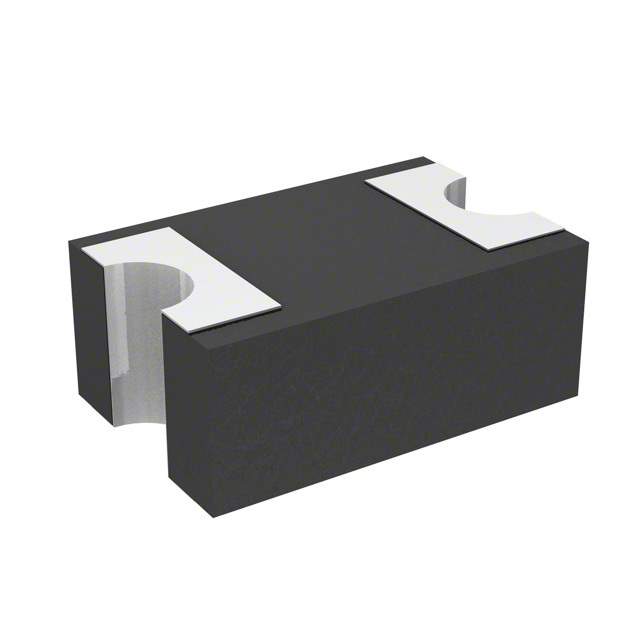

SD0805S020S0R5 Real Image
Same model may have multiple batches, images only for reference.

SD0805S020S0R5

Part No SD0805S020S0R5
Manufacturer AVX Corp/Kyocera Corp
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 20V 500MA 0805  /  Diode Schottky 20 V 500mA (DC) Surface Mount 0805 (2012 Metric)
Datasheet
SD0805S020S0R5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr KYOCERA AVX
Package Tape & Reel
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 20 V
Current - Average Rectified (Io) 500mA (DC)
Voltage - Forward (Vf) (Max) @ If 440 mV @ 500 mA
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 100 µA @ 20 V
Mounting SMD (SMT)
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805 (2012 Metric)
Operating Temperature - Junction -55°C ~ 125°C
Base Product Number SD0805S02
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Other Names 478-7799-6,478-7799-2,478-7799-1
Standard Package 3,000
Win Source Part Number 1210629-SD0805S020S0R5
Ultra Librarian 3D Model Ultra Librarian SD0805S020S0R5 CAD Model

Description

The 1210629-SD0805S020S0R5 from KYOCERA AVX is a Schottky diode designed for use in electronic circuits.

  • Maximum Reverse Voltage: 20V
  • Average Rectified Current: 500mA
  • Forward Voltage: 440 mV @ 500 mA
  • Reverse Leakage Current: 100 µA @ 20 V
  • Size: 0805 (2012 Metric)
  • Mounting: SMD (SMT)
  • Operating Temperature: -55°C to 125°C
