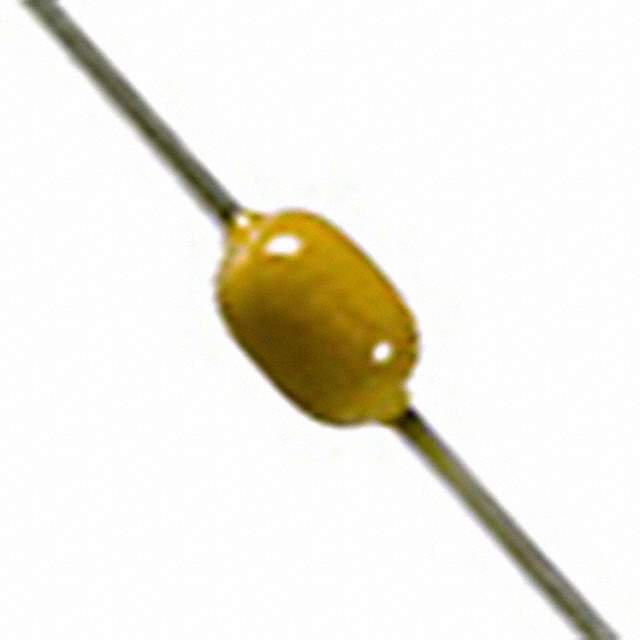

SA205E224ZAA Real Image
Same model may have multiple batches, images only for reference.

SA205E224ZAA

Part No SA205E224ZAA
Manufacturer AVX Corp/Kyocera Corp
Catalog Ceramic Capacitors
Datasheet
SA205E224ZAA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr KYOCERA AVX
Series SpinGuard® SA
Package Tape & Reel (TR)
Capacitance 0.22 µF
Tolerance -20%, +80%
Voltage - Rated 50V
Temperature Coefficient Z5U
Temperature Range - Operating 10°C ~ 85°C
Applications General Purpose
Mounting Type Through Hole
Package / Case Axial
Dimension 0.100" Dia x 0.260" L (2.54mm x 6.60mm)
Lead Style Straight
Standard Package 5,000
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0040
Win Source Part Number 1304221-SA205E224ZAA
Ultra Librarian 3D Model Ultra Librarian SA205E224ZAA CAD Model

Description

The KYOCERA AVX SpinGuard® SA205E224ZAA series ceramic capacitor is a high-quality, through-hole axial component that is ideal for general-purpose applications.

  • Capacitance: 0.22 µF
  • Voltage Rating: 50V
  • Temperature Coefficient: Z5U
  • Tolerance: -20%, +80%
  • Package: Tape and reel
  • Standard Package: 5,000 units
  • Height: Not specified
  • Thickness: Not specified
  • Lead Style: Straight
  • Mounting Type: Through-hole
  • Operating Temperature Range: 10°C to 85°C
  • ECCN: EAR99
  • RoHS: Non-compliant
