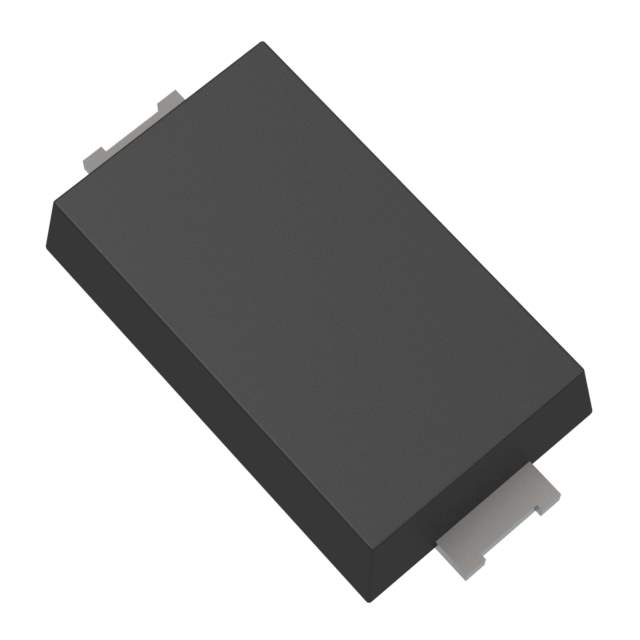

NA03HSA08-TE12L Real Image1 NA03HSA08-TE12L Real Image2
Same model may have multiple batches, images only for reference.
NA03HSA08-TE12L Real Image1 NA03HSA08-TE12L Real Image2
NA03HSA08-TE12L Real Image1 NA03HSA08-TE12L Real Image2
Same model may have multiple batches, images only for reference.

NA03HSA08-TE12L

Part No NA03HSA08-TE12L
Manufacturer AVX Corp/Kyocera Corp
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 80V 3A NA / Diode 80 V 3A Surface Mount NA (DO-221BC)
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes>Rectifiers>Single Diodes
Mfr AVX Corp/Kyocera Corp
Series -
Package Tape & Reel
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 80 V
Current - Average Rectified (Io) 3A
Voltage - Forward (Vf) (Max) @ If 700 mV @ 3 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 100 µA @ 80 V
Capacitance @ Vr, F -
Mounting Type Surface Mount
Package / Case DO-221BC, SMA Flat Leads Exposed Pad
Supplier Device Package NA (DO-221BC)
Operating Temperature - Junction -40°C ~ 150°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Standard Package 3,000 pcs
Win Source Part Number 1383004-NA03HSA08-TE12L
Ultra Librarian 3D Model Ultra Librarian NA03HSA08-TE12L CAD Model

Description

The NA03HSA08-TE12L is a fast recovery Schottky diode designed for rectifier applications.

  • Maximum Reverse Voltage: 80V
  • Average Rectified Current: 3A
  • Forward Voltage: 700mV @ 3A
  • Reverse Leakage Current: 100 µA @ 80V
  • Operating Temperature: -40°C to 150°C
  • Mounting Type: Surface Mount
  • Package: DO-221BC
  • Manufacturer: AVX Corp/Kyocera Corp
