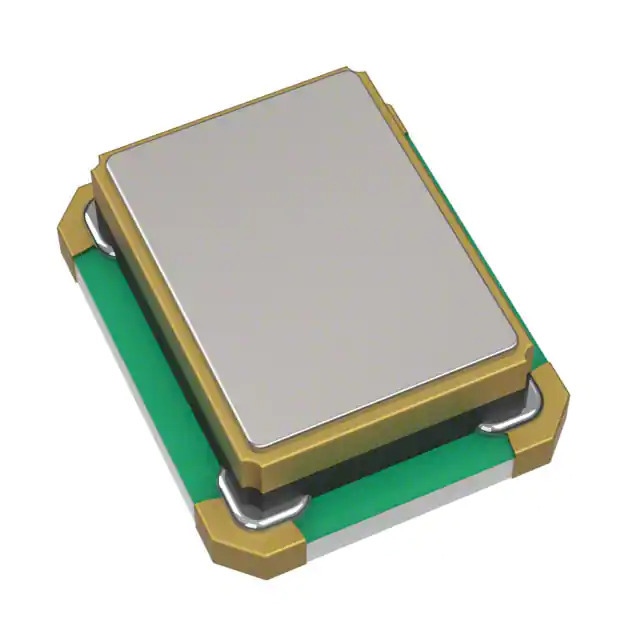

Same model may have multiple batches, images only for reference.
MC2520Z26.0000C19XSH AVX Corp/Kyocera Corp
Same model may have multiple batches, images only for reference.

MC2520Z26.0000C19XSH

Part No MC2520Z26.0000C19XSH
Manufacturer AVX Corp/Kyocera Corp
Catalog Oscillators
Description XTAL OSC XO 26.0000MHZ CMOS SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr KYOCERA AVX
Series MC2520Z
Package Tape & Reel
Product Status Active
Base Resonator Crystal
Type XO (Standard)
Frequency 26 MHz
Function Standby (Power Down)
Output CMOS
Voltage - Supply 1.71V ~ 3.63V
Frequency Stability ±30ppm
Absolute Pull Range (APR) -
Temperature Range - Operating -40°C ~ 125°C
Spread Spectrum Bandwidth -
Current - Supply (Max) 7.3mA
Ratings AEC-Q200
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.031" (0.80mm)
Current - Supply (Disable) (Max) 5µA
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1366438-MC2520Z26.0000C19XSH
Ultra Librarian 3D Model Ultra Librarian MC2520Z26.0000C19XSH CAD Model

Description

The KYOCERA AVX MC2520Z series oscillators are standard crystal oscillators with a frequency of 26 MHz. These oscillators come in a tape and reel package and have a temperature range of -40°C to 125°C.

  • Temperature Range: -40°C to 125°C
  • MSL: 1 (Unlimited)
  • Mounting Type: Surface Mount
  • Voltage Supply: 1.71V to 3.63V
  • Current Supply: 7.3mA
  • Size: 0.098" L x 0.079" W (2.50mm x 2.00mm)
  • Height: 0.031" (0.80mm)
  • Frequency: 26 MHz
