Same model may have multiple batches, images only for reference.

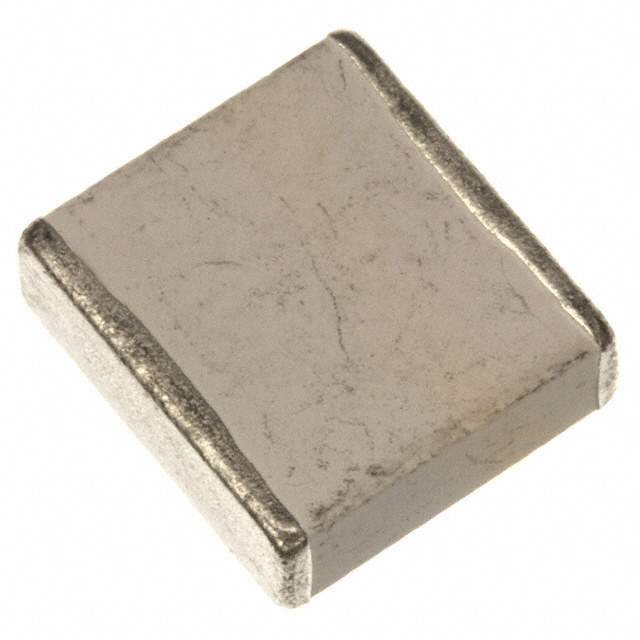

HQCEMA220JAT6A Real Image
Same model may have multiple batches, images only for reference.

HQCEMA220JAT6A

Part No HQCEMA220JAT6A
Manufacturer AVX Corp/Kyocera Corp
Catalog Ceramic Capacitors
Description CAP CER 22PF 7.2KV NP0 3838 / 22 pF ±5% 7200V (7.2kV) Ceramic Capacitor C0G, NP0 3838 (9797 Metric)
Datasheet
HQCEMA220JAT6A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Ceramic Capacitors
Mfr KYOCERA AVX
Series Hi-Q®
Package Tray
Product Status Obsolete
Capacitance 22 pF
Tolerance ±5%
Voltage - Rated 7200V (7.2kV)
Temperature Coefficient C0G, NP0
Temperature Range - Operating -55°C ~ 125°C
Features High Q, Low Loss, Ultra Low ESR, High Voltage
Applications RF, Microwave, High Frequency
Mounting Type Surface Mount, MLCC
Package / Case 3838 (9797 Metric)
Size / Dimension 0.380" L x 0.380" W (9.65mm x 9.65mm)
Thickness (Max) 0.170" (4.32mm)
Standard Package 24
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0020
Win Source Part Number 1339584-HQCEMA220JAT6A
Ultra Librarian 3D Model Ultra Librarian HQCEMA220JAT6A CAD Model

Description

The Hi-Q® HQCEMA220JAT6A by KYOCERA AVX is a ceramic capacitor that is part of the Hi-Q® series.

  • Packaging: Tray
  • Standard Package: 24
  • Size / Dimension: 0.380" L x 0.380" W (9.65mm x 9.65mm)
  • Application: RF, Microwave, High Frequency
  • Capacitance: 22 pF
  • Tolerance: ±5%
  • Voltage - Rated: 7200V (7.2kV)
  • Temperature Coefficient: C0G, NP0
  • Thickness (Max): 0.170" (4.32mm)
  • Mounting Type: Surface Mount, MLCC
  • Package / Case: 3838 (9797 Metric)
  • Operating Temperature: -55°C ~ 125°C
  • MSL: 1 (Unlimited)
  • REACH Status: REACH Unaffected
  • HTSUS: 8532.24.0020
  • Lifecycle Status: Obsolete
