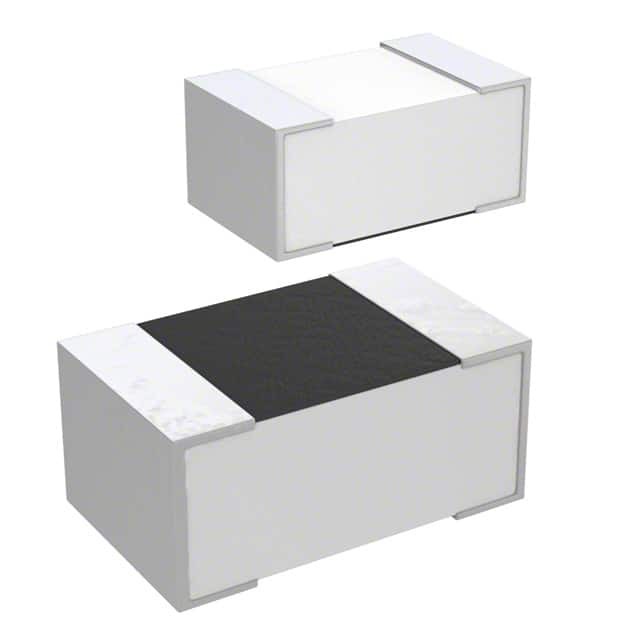

Same model may have multiple batches, images only for reference.
F0805B0R50FSTR
Same model may have multiple batches, images only for reference.

F0805B0R50FSTR

Part No F0805B0R50FSTR
Manufacturer AVX Corp/Kyocera Corp
Catalog Fuses
Description FUSE BOARD MNT 500MA 63VAC 0805 / 500 mA 63 V AC DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 0805 (2012 Metric)
Datasheet
F0805B0R50FSTR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuses
Mfr AVX Corp/Kyocera Corp
Series Accu-Guard®
Package Tape & Reel
Product Status Active
Mounting Type Surface Mount
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 500 mA
Voltage Rating - AC 63 V
Response Time Fast Blow
Package / Case 0805 (2012 Metric)
Breaking Capacity @ Rated Voltage 50A
Melting I2t 0.0002
Approval Agency cUL, UL
Temperature Range - Operating -55°C ~ 125°C
Size / Dimension 0.083" L x 0.050" W x 0.035" H (2.10mm x 1.27mm x 0.90mm)
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 918824-F0805B0R50FSTR
Ultra Librarian 3D Model Ultra Librarian F0805B0R50FSTR CAD Model

Description

The AVX Accu-Guard® 918824-F0805B0R50FSTR is a surface mount fuse designed for circuit protection.

  • Voltage Rating: 63V
  • Response Time: Fast Blow
  • Breaking Capacity @ Rated Voltage: 50A
  • Size: 0.083" L x 0.050" W x 0.035" H (2.10mm x 1.27mm x 0.90mm)
  • Mounting Type: Surface Mount
  • Temperature Range: -55°C to 125°C
  • Package Quantity: 3,000 pcs
  • Approval: cUL and UL
