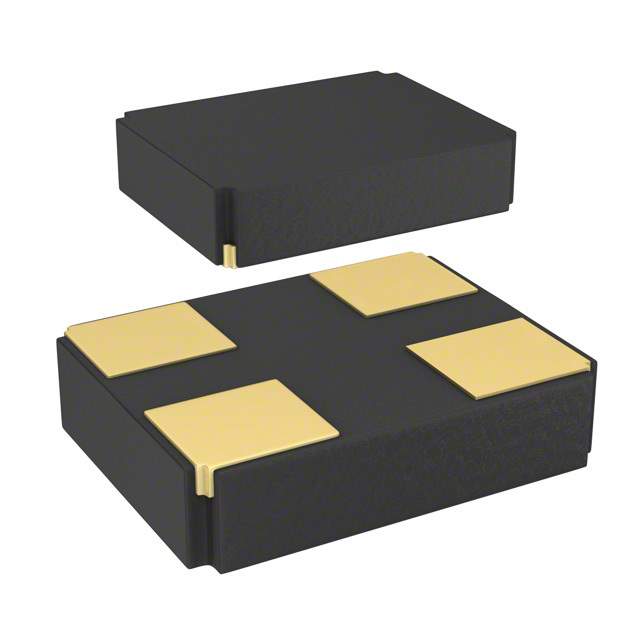

CX3225GB20000D0HPQCC Real Image
Same model may have multiple batches, images only for reference.

CX3225GB20000D0HPQCC

Part No CX3225GB20000D0HPQCC
Manufacturer AVX Corp/Kyocera Corp
Catalog Crystals
Description CRYSTAL 20.0000MHZ 8PF SMD / 20 MHz ±20ppm Crystal 8pF 60 Ohms 4-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr KYOCERA AVX
Series CX3225GB, Kyocera
Package Tape & Reel
Type MHz Crystal
Frequency 20 MHz
Frequency Stability ±30ppm
Frequency Tolerance ±20ppm
Load Capacitance 8pF
ESR (Equivalent Series Resistance) 60 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.035" (0.90mm)
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.60.0050
Other Names 1254-1191-1,1253-1191-1,1253-1191-2,1254-1191-6-ND,478-CX3225GB20000D0HPQCCDKR,1253-1191-6-ND,1253-1191-6,1254-1191-6,478-CX3225GB20000D0HPQCCTR,1254-1191-1-ND,478-CX3225GB20000D0HPQCCCT,1253-1191-1-ND,1253-1191-2-ND,478-CX3225GB20000D0HPQCC,478-CX3225GB20000D0HPQCC-ND
Standard Package 3,000
Win Source Part Number 1053814-CX3225GB20000D0HPQCC
Ultra Librarian 3D Model Ultra Librarian CX3225GB20000D0HPQCC CAD Model

Description

The CX3225GB series MHz crystal oscillator is manufactured by Kyocera and is part of the Crystals, Oscillators, Resonators>Crystals category.

  • Frequency: 20 MHz
  • Frequency Tolerance: ±20ppm
  • Frequency Stability: ±30ppm
  • Package: 4-SMD, No Lead
  • Height: 0.035" (0.90mm)
  • Dimension: 0.126" L x 0.098" W (3.20mm x 2.50mm)
  • Operating Temperature: -40°C ~ 85°C
  • ESR (Equivalent Series Resistance): 60 Ohms
  • RoHS Compliant: Yes
  • REACH Status: Affected
  • Manufacturer: Kyocera
