Same model may have multiple batches, images only for reference.

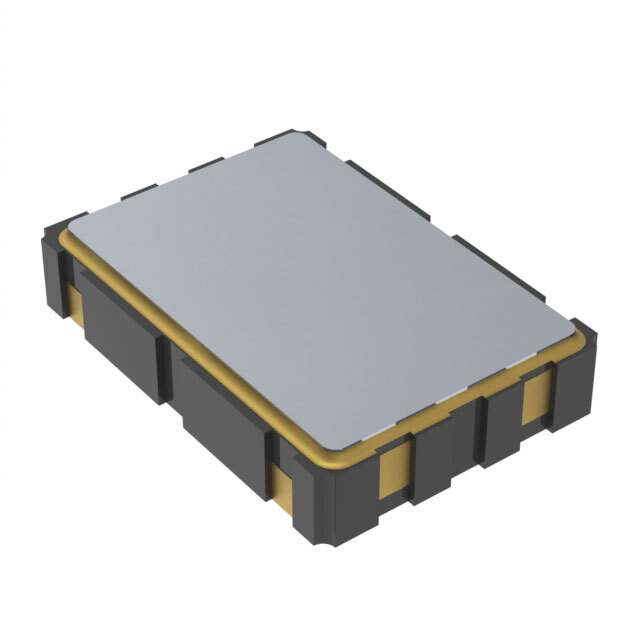

510CCA156M250AAG Real Image
Same model may have multiple batches, images only for reference.

510CCA156M250AAG

Part No 510CCA156M250AAG
Manufacturer Skyworks Solutions Inc.
Catalog Oscillators
Description XTAL OSC XO 156.2500MHZ CMOS SMD / 156.25 MHz XO (Standard) CMOS Oscillator 3.3V Enable/Disable 4-SMD, No Lead
Datasheet
510CCA156M250AAG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr Skyworks Solutions Inc.
Series Si510
Package Strip
Base Resonator Crystal
Type XO (Standard)
Frequency 156.25 MHz
Function Enable/Disable
Output CMOS
Voltage - Supply 3.3V
Frequency Stability ±20ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 26mA
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) 0.071" (1.80mm)
Current - Supply (Disable) (Max) 18mA
Base Product Number 510CCA
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Standard Package 200
Win Source Part Number 1013614-510CCA156M250AAG
Ultra Librarian 3D Model Ultra Librarian 510CCA156M250AAG CAD Model

Description

This Si510 series XO (Standard) oscillator has a frequency of 156.25 MHz.

  • Series: Si510
  • Frequency: 156.25 MHz
  • Manufacturer: Skyworks Solutions Inc.
  • Mounting Style: SMD (SMT)
  • Function: Enable/Disable
  • Output: CMOS
  • Frequency Stability: ±20ppm
  • Current Supply (max): 26mA
  • Current Supply (disable) (max): 18mA
  • Voltage Supply: 3.3V
  • Temperature Range: -40°C to 85°C
  • Dimension: 0.276" L x 0.197" W (7.00mm x 5.00mm)
  • Package/Case: 4-SMD, no lead
  • Height: 0.071" (1.80mm)
  • MSL Level: 1 (Unlimited)
  • Base Resonator: Crystal
