Same model may have multiple batches, images only for reference.

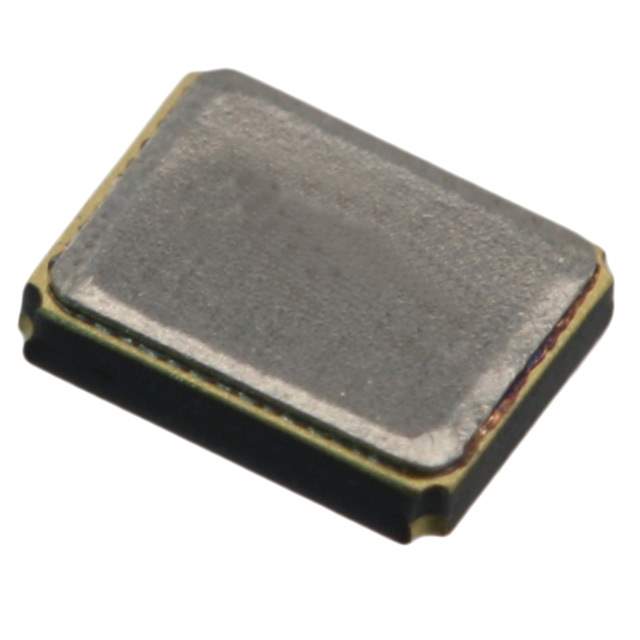

CX2520DB32000D0WZRC1 Real Image
Same model may have multiple batches, images only for reference.

CX2520DB32000D0WZRC1

Part No CX2520DB32000D0WZRC1
Manufacturer AVX Corp/Kyocera Corp
Catalog Crystals
Description CRYSTAL 32.0000MHZ 8PF SMD / Crystal 32MHz ±40ppm (Tol) ±40ppm (Stability) 8pF FUND 50Ohm 4-Pin SMD T/R
Datasheet
CX2520DB32000D0WZRC1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer AVX Corp/Kyocera Corp
Series CX2520DB, Kyocera
Packaging Reel package
Type MHz Crystal
Frequency 32MHz
Frequency Stability ±50ppm
Frequency Tolerance ±25ppm
Load Capacitance 8pF
ESR (Equivalent Series Resistance) 50 Ohm
Operating Mode Fundamental
Operating Temperature Range -25°C ~ 75°C
Ratings AEC-Q200
Mounting SMD
Package 4-SMD, No Lead
Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Maximum) 0.022" (0.55mm)
Win Source Part Number 772507-CX2520DB32000D0WZRC1
Popularity Medium
Supply and Demand Status Balance
Quantity per package 3k pcs
ECCN EAR99
Ultra Librarian 3D Model Ultra Librarian CX2520DB32000D0WZRC1 CAD Model

Description

The CX2520DB32000D0WZRC1 is a 32MHz crystal manufactured by AVX Corp/Kyocera Corp.

  • Type: MHz Crystal
  • ESR: 50 Ohm
  • Load Capacitance: 8pF
  • Mode: Fundamental
  • Frequency Stability: ±50ppm
  • Frequency Tolerance: ±25ppm
  • AEC-Q200: Yes
  • Packaging: 4-SMD, No Lead
  • Dimension: 0.098” L x 0.079” W (2.50mm x 2.00mm)
  • Height Seated (Max): 0.022” (0.55mm)
  • Quantity Per Package: 3k pcs
  • Alternative Parts: EA2025JA10-32.000M, EA2025HA08-32.000M TR, EA2025HA08-32.000M, ECM2A4E2A10-32.000M TR
