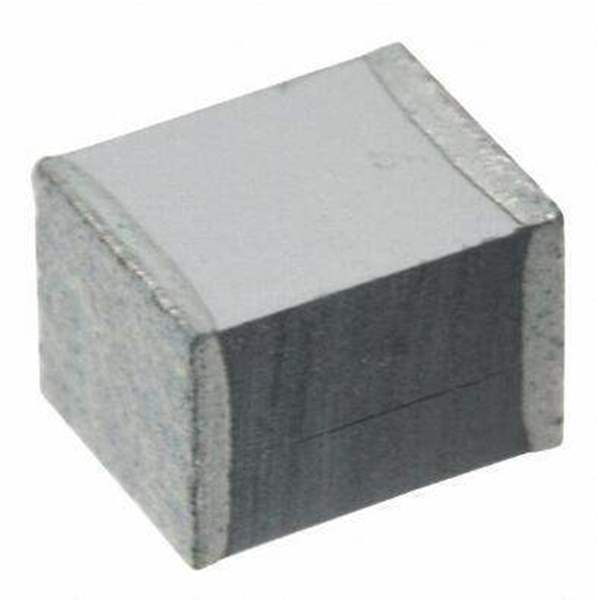

CB047D0684JBC KYOCERA AVX
Same model may have multiple batches, images only for reference.

CB047D0684JBC

Part No CB047D0684JBC
Manufacturer AVX Corp/Kyocera Corp
Catalog Film Capacitors
Description CAP FILM
Datasheet
CB047D0684JBC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer KYOCERA AVX
Category Capacitors Film Capacitors
Part Status Active
Capacitance 0.68 µF
Tolerance ±5%
Voltage Rating - AC 40V
Voltage Rating - DC 63V
Operating Temperature -55°C ~ 125°C
Mounting Type Surface Mount
Size / Dimension 0.228" L x 0.197" W (5.80mm x 5.00mm)
Height - Seated (Max) 0.154" (3.90mm)
Win Source Part Number WS1306354-CB047D0684JBC
Ultra Librarian 3D Model Ultra Librarian CB047D0684JBC CAD Model

Description

0.68 µF Film Capacitor 40V 63V Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked 2220 (5750 Metric)
