Same model may have multiple batches, images only for reference.

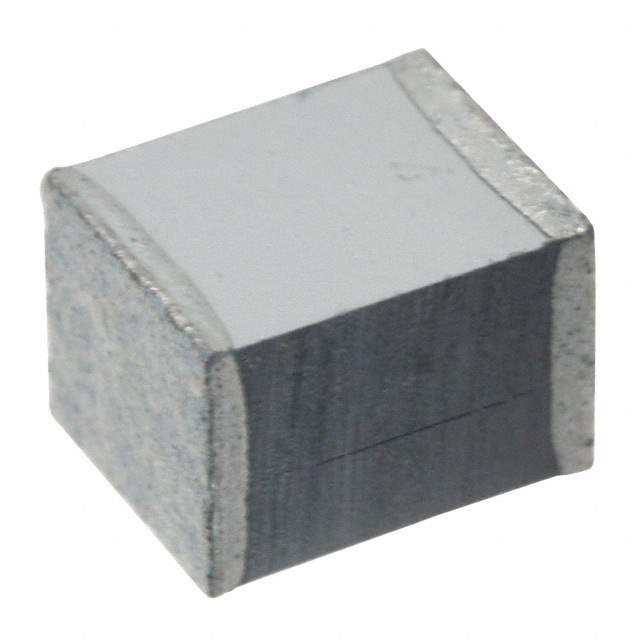

CB028B0823JBA Real Image
Same model may have multiple batches, images only for reference.

CB028B0823JBA

Part No CB028B0823JBA
Manufacturer AVX Corp/Kyocera Corp
Catalog Film Capacitors
Description CAP FILM 0.082UF 5% 16VDC 1210 / 0.082 µF Film Capacitor 10V 16V Polyphenylene Sulfide (PPS), Metallized - Stacked 1210 (3225 Metric)
Datasheet
CB028B0823JBA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr KYOCERA AVX
Series CB
Package Tape & Reel (TR)
Capacitance 0.082 µF
Tolerance ±5%
Voltage Rating - AC 10V
Voltage Rating - DC 16V
Dielectric Material Polyphenylene Sulfide (PPS), Metallized - Stacked
Temperature Range - Operating -55°C ~ 125°C
Mounting SMD (SMT)
Package / Case 1210 (3225 Metric)
Dimension 0.130" L x 0.098" W (3.30mm x 2.50mm)
Height - Seated (Max) 0.071" (1.80mm)
Termination Solder Pads
Applications General Purpose
MSL Level 2A (4 Weeks)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0010
Standard Package 2,500
Win Source Part Number 1214465-CB028B0823JBA
Ultra Librarian 3D Model Ultra Librarian CB028B0823JBA CAD Model

Description

The KYOCERA AVX CB028B0823JBA is a film capacitor that has a capacitance of 0.082 μF and a tolerance of ±5%.

  • Series: CB
  • Capacitance: 0.082 μF
  • Tolerance: ±5%
  • Package/Case Size: 1210 (3225 Metric)
  • Voltage Rating (AC): 10V AC
  • Voltage Rating (DC): 16V DC
  • Application: General Purpose
  • Dielectric Material: Polyphenylene Sulfide (PPS), Metallized - Stacked
  • Height-Seated (Max): 0.071” (1.80mm)
  • Temperature Range: -55°C to 125°C
  • Standard Package: 2,500
