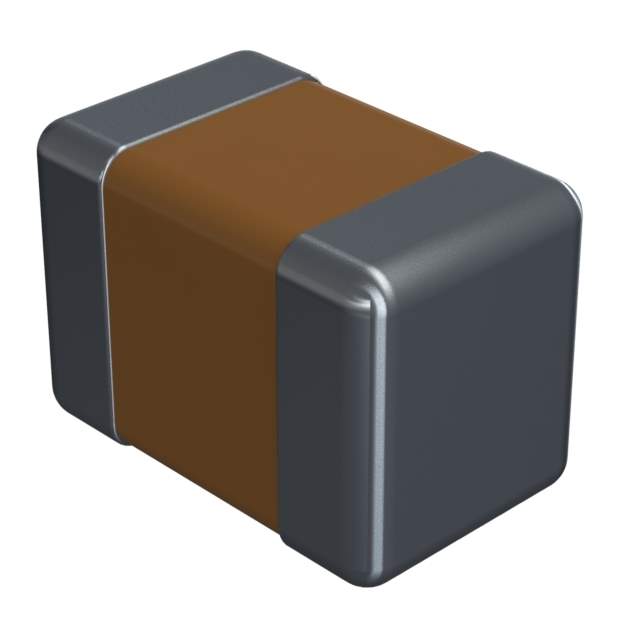

08053D684KAT2A Real Image
Same model may have multiple batches, images only for reference.

08053D684KAT2A

Part No 08053D684KAT2A
Manufacturer AVX Corp/Kyocera Corp
Catalog Ceramic Capacitors
Description CAP CER 0.68UF 25V X5R 0805 / 0.68 µF ±10% 25V Ceramic Capacitor X5R 0805 (2012 Metric)
Datasheet
08053D684KAT2A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr KYOCERA AVX
Package Tape & Reel
Capacitance 0.68 µF
Tolerance ±10%
Voltage - Rated 25V
Temperature Coefficient X5R
Temperature Range - Operating -55°C ~ 85°C
Applications General Purpose
Mounting Type Surface Mount, MLCC
Package / Case 0805 (2012 Metric)
Dimension 0.079" L x 0.049" W (2.01mm x 1.25mm)
Thickness (Max) 0.055" (1.40mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0020
Other Names 478-1408-2,478-1408-6,08053D684KAT2A/2K,08053D684KAT2A/3K,478-1408-1,08053D684KAT2A\\2K
Standard Package 2,000
Win Source Part Number 1033908-08053D684KAT2A
Ultra Librarian 3D Model Ultra Librarian 08053D684KAT2A CAD Model

Description

The KYOCERA AVX 08053D684KAT2A Capacitor is a ceramic capacitor that is ideal for general-purpose applications.

  • Capacitance: 0.68 µF
  • Voltage Rating: 25V
  • Temperature Coefficient: X5R
  • Temperature Range: -55°C to 85°C
  • Thickness: 0.055" (1.40mm)
  • Mounting: Surface Mount
  • Package: Tape and Reel
  • Package Size: 0805 (2012 Metric)
