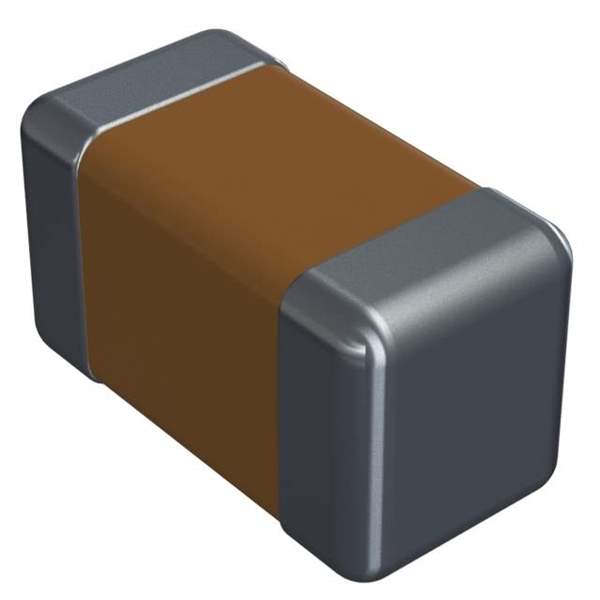

06035A220KAT2A Real Image
Same model may have multiple batches, images only for reference.

06035A220KAT2A

Part No 06035A220KAT2A
Manufacturer AVX Corp/Kyocera Corp
Catalog Ceramic Capacitors
Description CAP CER 22PF 50V C0G/NP0 0603 / 22 pF ±10% 50V Ceramic Capacitor C0G, NP0 0603 (1608 Metric)
Datasheet
06035A220KAT2A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Manufacturer KYOCERA AVX
Packaging Reel - TR
Capacitance 22 pF
Tolerance ±10%
Voltage - Rated 50V
Temperature Coefficient C0G, NP0
Temperature Range - Operating -55°C ~ 125°C
Applications General Purpose
Mounting Surface Mount, MLCC
Case / Package 0603 (1608 Metric)
Size / Dimension 0.063" L x 0.032" W (1.60mm x 0.81mm)
Thickness (Max) 0.035" (0.90mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0020
Other Part Number 06035A220KAT2A/4K,06035A220KAT2A-ND,06035A220KAT2A\\4K,478-7914-6,478-7914-1,478-7914-2
Standard Package 4,000
Win Source Part Number 1330209-06035A220KAT2A
Ultra Librarian 3D Model Ultra Librarian 06035A220KAT2A CAD Model

Description

The KYOCERA AVX 1330209-06035A220KAT2A is a ceramic capacitor with a capacitance of 22 pF and a voltage rating of 50V.

  • Manufacturer: KYOCERA AVX
  • Capacitance: 22 pF
  • Voltage Rating: 50V
  • Application: General Purpose
  • Tolerance: ±10 percent
  • Package / Case: 0603 (1608 Metric)
  • Mounting Type: Surface Mountable
  • Temperature Coefficient: C0G, NP0
  • Operating Temperature: -55°C to 125°C
  • RoHS3 Compliant: Yes
  • REACH: Unaffected
  • Standard Package: 4,000
  • Packaging: Reel
