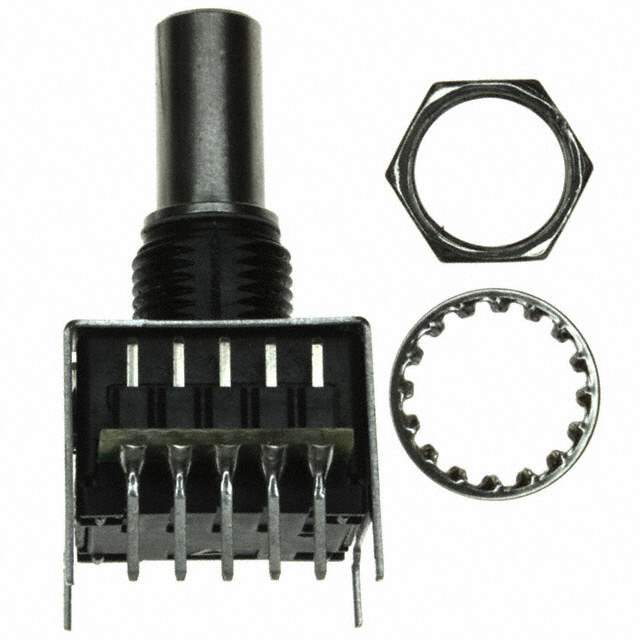

The HRPG-ASCA-14R is a high-performance, cost-effective encoder manufactured by AVAGO TECHNOLOGIES LIMITED. It is designed for use in a variety of industrial applications requiring precise position and velocity feedback. This encoder boasts robust construction and reliable operation, making it suitable for demanding environments.

Applications

• Robotics and automation systems
• Motor control systems
• Industrial printing equipment
• Medical equipment
• CNC machines

Features

• High resolution for accurate positioning
• Incremental encoder type
• Two-channel quadrature output
• Compact size for easy integration
• Robust construction for harsh environments
• Wide operating temperature range

Benefits

• Improved system performance due to accurate feedback
• Reduced downtime due to reliable operation
• Simplified system integration due to compact size
• Lower system cost due to cost-effective design
• Increased system safety due to accurate positioning

Additional Details

The HRPG-ASCA-14R encoder typically provides an incremental quadrature output, meaning it generates two signals (A and B) that are 90 degrees out of phase. This allows the receiving device to determine both position and direction of rotation. The specific resolution (pulses per revolution) varies depending on the model. Detailed specifications regarding voltage requirements, operating temperature ranges, and specific output signal characteristics can be found in the manufacturer's datasheet. The encoder is designed to withstand a degree of shock and vibration, making it suitable for industrial applications. It is commonly coupled directly to a motor shaft or other rotating component.
