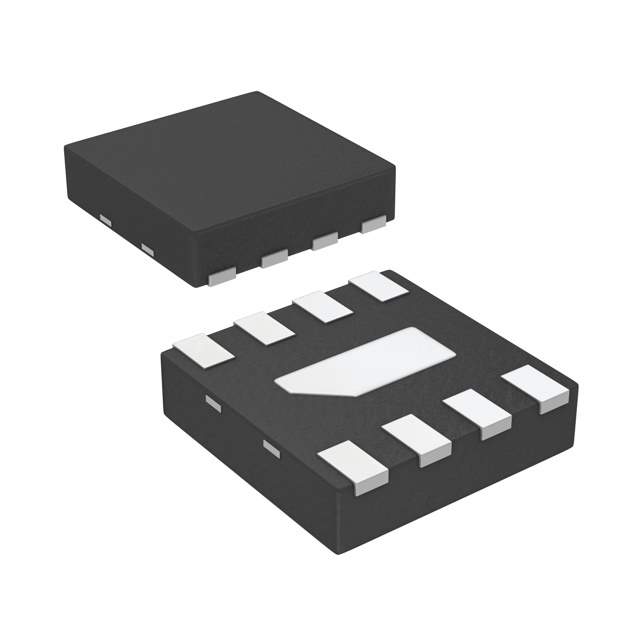

The APDS-9700 is a digital proximity and ambient light sensor from Avago Technologies (now Broadcom). This sensor integrates an infrared LED, photodiode, proximity detector, and ambient light sensor (ALS) into a single package. It provides accurate proximity detection and ambient light sensing capabilities, making it suitable for a variety of applications requiring automatic brightness adjustment and presence detection.

Applications

• Mobile Devices: Used in smartphones and tablets for automatic display brightness adjustment and proximity sensing during calls.
• Notebook Computers: Employed in laptops for automatic keyboard backlight control and user presence detection.
• Consumer Electronics: Found in televisions and other consumer devices for ambient light-based brightness control.
• Industrial Automation: Used in industrial sensors for object detection and ambient light monitoring.
• Medical Devices: Utilized in medical equipment for proximity detection and ambient light compensation.

Features

• Integrated Proximity and Ambient Light Sensor: Combines proximity and ambient light sensing in a single device.
• Digital Output: Provides digital output via I2C interface.
• Proximity Detection: Detects the presence of objects within a certain range.
• Ambient Light Sensing: Measures the intensity of ambient light.
• Automatic Gain Adjustment: Optimizes sensitivity for different lighting conditions.
• Low Power Consumption: Minimizes power requirements for battery-powered devices.

Benefits

• Enhanced User Experience: Automatic brightness adjustment improves display visibility and reduces eye strain.
• Power Savings: Automatic backlight control reduces power consumption in portable devices.
• Compact Design: Integrated sensor reduces component count and board space.
• Easy Integration: Digital output simplifies interface with microcontrollers and processors.
• Reliable Performance: Designed for stable and reliable operation in various environments.

Additional Details

The APDS-9700 sensor communicates with a microcontroller or processor via an I2C interface. The sensor's proximity detection range and ambient light sensitivity can be configured through software. Proper optical design is important to ensure accurate measurements and reliable proximity detection. The sensor's output is typically calibrated to compensate for variations in ambient light and temperature. The device is lead-free and RoHS compliant, adhering to environmental regulations. The sensor's proximity detection is based on measuring the reflection of infrared light emitted by the integrated LED.
