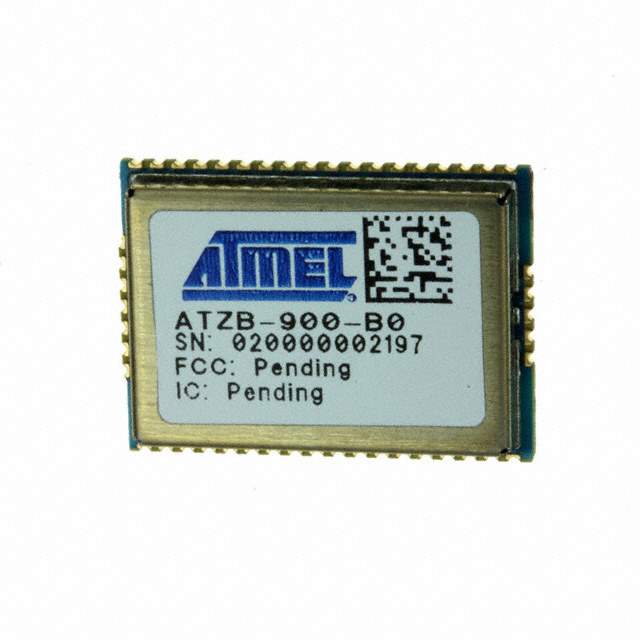

ATZB-900-B0R Real Image
Same model may have multiple batches, images only for reference.

ATZB-900-B0R

Part No ATZB-900-B0R
Manufacturer Atmel
Catalog RF Transceiver Modules
Description 802.15.4/ZigBee SOC 928MHz 250Kbps 48-Pin T/R / RF TXRX MODULE 802.15.4 RP-SMA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Microchip Technology
Packaging Reel - TR
Status Obsolete(EOL)
RF Family/Standard 802.15.4
Protocol Zigbee
Modulation BPSK, O-QPSK
Frequency 783MHz, 868MHz, 915MHz
Data Rate 250kbps
Power - Output 11dBm
Sensitivity -110dBm
Serial Interfaces I2C, JTAG, SPI, UART, USART
Antenna Type Not Included, RP-SMA
Memory Size 128kB Flash, 4kB EEPROM, 8kB RAM
Supply Voltage - Operating 1.8 V to 3.6 V
Current - Receiving 15mA
Current - Transmitting 20mA
Mounting SMD (SMT)
Temperature Range - Operating -20°C to 70°C
Dimension PCB Module
Win Source Part Number 64778-ATZB-900-B0R
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name ATZB-900
Introduction Date March 23, 2009
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian ATZB-900-B0R CAD Model

Description

Product Overview

Offering high-frequency communication capabilities, the ATZB-900-B0R module is designed to meet the demands of modern wireless networks. Its design supports a variety of long-range communication needs.

Applications

  • Long-range RF applications
  • Telemetry systems
  • Rugged remote operations
  • Agricultural monitoring systems

Features and Benefits

  • High-frequency signal integrity
  • Durable design for harsh environments
  • Configurable data channels

The ATZB-900-B0R ensures robust communication solutions tailored to specific industry requirements, ensuring effective data management.
