The AT34C02D-MAHM-H is a 2-Kbit (256 x 8) Serial EEPROM utilizing the 2-wire I2C interface. Manufactured by Atmel (now Microchip Technology), this device is designed for applications requiring low-power, non-volatile memory storage. It's commonly used for storing small amounts of configuration data, user preferences, or calibration parameters in a variety of electronic systems. The "MAHM-H" suffix denotes specific packaging and temperature grade options.

Applications:

• Consumer Electronics: Used to store user settings and configuration data in devices such as TVs, remote controls, and audio players.
• Industrial Control Systems: Stores calibration data and system parameters in industrial automation equipment.
• Medical Devices: Retains critical device settings and calibration information in medical instruments.
• Automotive Electronics: Employed in car radios and other automotive systems for storing configuration settings.
• Security Systems: Stores security codes and access control data in alarm systems and access control devices.

Features:

• 2Kb (256 x 8) EEPROM: Provides 2 kilobits of non-volatile storage capacity.
• 2-Wire Serial Interface: Uses the I2C serial protocol for easy communication with microcontrollers.
• Low Voltage Operation: Operates over a wide voltage range, typically from 1.7V to 5.5V.
• Low Power Consumption: Minimizes power usage in both active and standby modes.
• Write Protection: Provides hardware write protection to prevent accidental data corruption.
• Self-Timed Write Cycle: Simplifies write operations by automatically managing the write cycle timing.
• High Reliability: Offers high endurance and data retention characteristics.
• RoHS Compliant: Meets environmental standards for lead-free and halogen-free manufacturing.

Benefits:

• Non-Volatile Storage: Retains data even when power is removed.
• Simple Interface: The 2-wire I2C interface allows easy integration with various microcontrollers.
• Low Power: Suitable for battery-powered and energy-sensitive applications.
• Data Protection: Prevents accidental data loss.
• Reliable Performance: Ensures long-term data retention and reliable operation.

Additional Details:

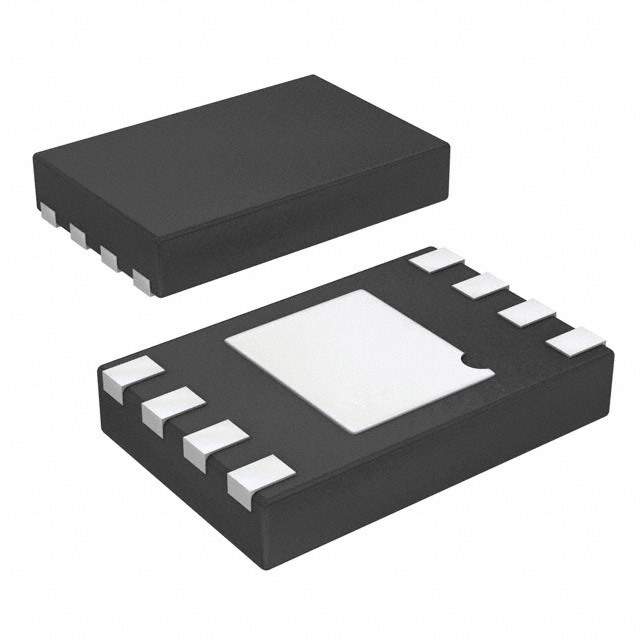

The AT34C02D-MAHM-H typically comes in an 8-lead package suitable for surface mounting. It operates over a specified temperature range, typically from -40°C to +85°C. The device supports standard and fast I2C modes. The write cycle time is generally a few milliseconds. Multiple devices can share the same I2C bus using address selection. This EEPROM is a dependable choice for various applications requiring small-capacity, non-volatile memory storage due to its reliability and ease of use.
