The AT24C32D-MEHM is a 32-kilobit (4K x 8) Serial EEPROM from Atmel (now Microchip Technology). It features a 2-wire serial interface and is optimized for use in many industrial and commercial applications where non-volatile memory is required to store configuration data, calibration constants, or other critical information. This EEPROM offers low power consumption and a wide operating voltage range, making it suitable for battery-powered and low-power systems.

Applications:

• Consumer Electronics: Used for storing user preferences and settings in devices like TVs, set-top boxes, and audio equipment.
• Industrial Control Systems: Stores calibration data and configuration parameters in industrial automation equipment.
• Medical Devices: Retains critical device settings and patient data in portable medical instruments.
• Automotive Electronics: Used in automotive systems for storing configuration and diagnostic information.
• Smart Cards: Provides secure storage for data in smart card applications.

Features:

• 32Kb (4K x 8) EEPROM: Provides 32 kilobits of non-volatile memory.
• 2-Wire Serial Interface: Uses I2C protocol for simple communication with microcontrollers.
• Low Voltage Operation: Operates from a wide voltage range (typically 1.7V to 5.5V).
• Low Power Consumption: Minimizes power usage in both active and standby modes.
• Write Protection: Protects the entire memory array from accidental writes.
• Self-Timed Write Cycle: Simplifies write operations by automatically managing the write cycle timing.
• High Reliability: Offers high endurance and data retention.
• Pb-Free/Halogen-Free: Complies with environmental standards.

Benefits:

• Non-Volatile Storage: Retains data even when power is removed.
• Easy Integration: Simple 2-wire interface allows easy integration with microcontrollers.
• Low Power: Suitable for battery-powered and energy-sensitive applications.
• Data Protection: Prevents accidental data loss.
• Reliable Performance: Ensures long-term data retention and reliability.

Additional Details:

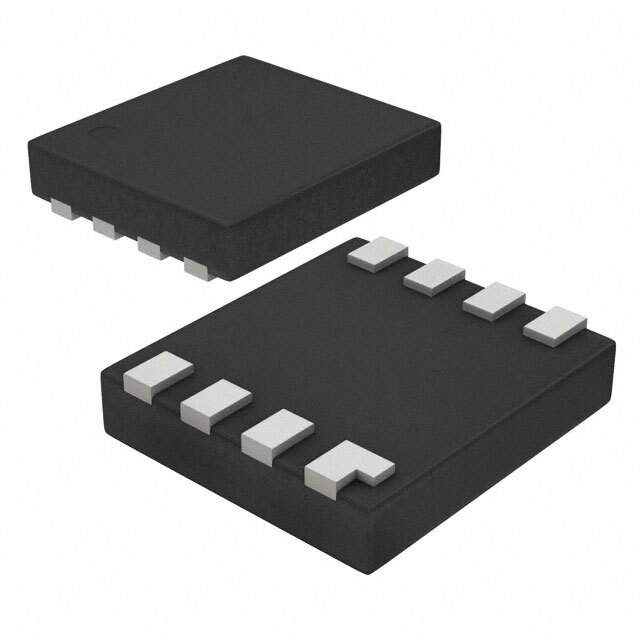

The AT24C32D-MEHM comes in an 8-lead package and supports standard, fast, and high-speed I2C modes. Its operating temperature range is typically -40°C to +85°C, making it suitable for a wide range of environmental conditions. The device offers a typical write cycle time of 5ms and supports page write operations, allowing multiple bytes to be written in a single operation. The address selection pins allow multiple devices to be connected on the same I2C bus. The AT24C32D series is known for its robust performance and is widely used in various applications requiring reliable non-volatile memory.
