Same model may have multiple batches, images only for reference.

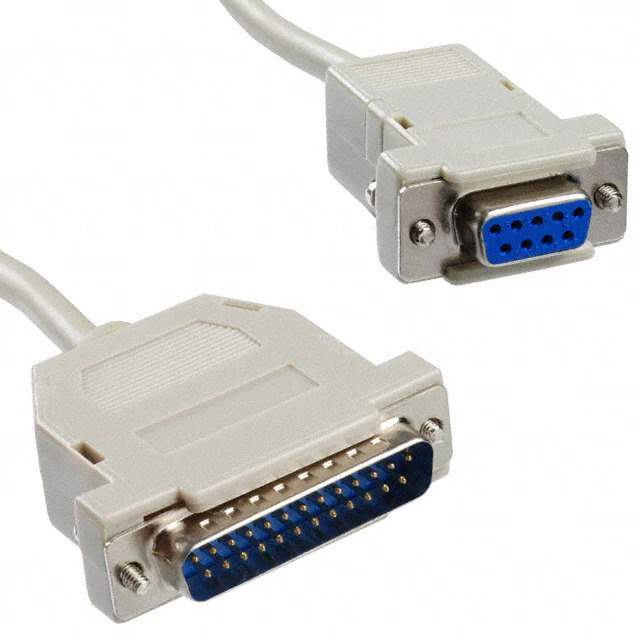

AK150-3 Real Image
Same model may have multiple batches, images only for reference.

AK150-3

Part No AK150-3
Manufacturer Assmann WSW Components
Catalog D - Sub Cables
Description CABLE ASSY DB09 TO DB25 SHLD 3M
Datasheet
AK150-3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Cable Assemblies - D-Sub Cables
Mfr Assmann WSW Components
Package Bulk
Product Status Active
1st Connector Receptacle, Female Sockets
2nd Connector Plug, Male Pins
Type DB09, DB25
Number of Positions 9, 25
Length 9.84' (3.00m)
Shielding Shielded
Color Beige, Individual (Round)
Usage Printer, Serial
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8544.42.9090
Win Source Part Number 1172609-AK150-3
Ultra Librarian 3D Model Ultra Librarian AK150-3 CAD Model

Description

The Assmann WSW Components D-Sub Cable is a versatile cable assembly designed for printer and serial applications. Assmann WSW Components D-Sub Cable is designed by Assmann WSW Components.

  • Application: Printer and Serial
  • Types: DB09 and DB25
  • Positions: 9 and 25
  • Color: Beige
  • Connector Type: Individual (Round) Color-Coded
  • Length: 9.84' (3.00m)
  • Shielded: Yes
  • Standard Package: 1 pcs
  • First Connector: Receptacle with Female Sockets
  • Second Connector: Plug with Male Pins
  • HTSUS Code: 8544.42.9090
