A-DF 09 LL/Z Assmann WSW Components
Same model may have multiple batches, images only for reference.

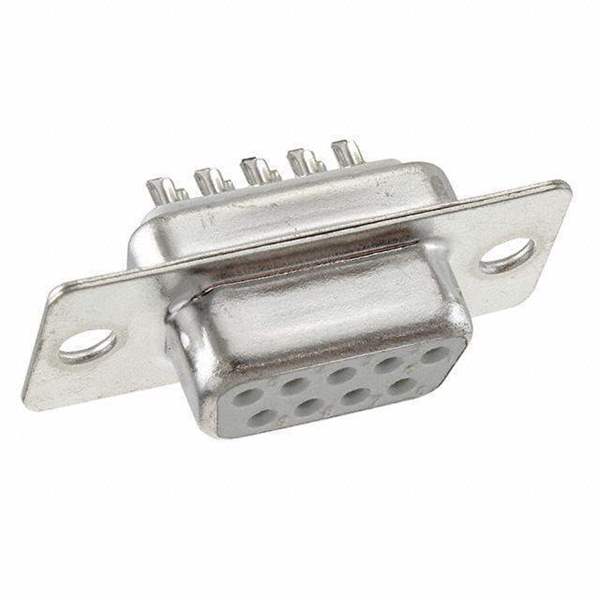

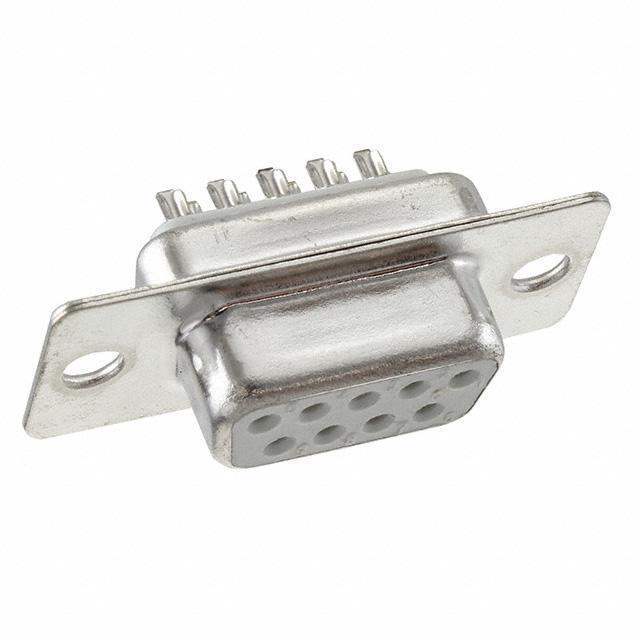

A-DF 09 LL/Z

Part No A-DF 09 LL/Z
Manufacturer Assmann WSW Components
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB RCPT 9POS SLDR CUP
Datasheet
A-DF 09 LL/Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1201169-A-DF 09 LL/Z
Manufacturer Assmann WSW Components
Category Connectors, Interconnects -D-Sub, D-Shaped Connectors -D-Sub Connector Assemblies
Package Tray
Product Status Active
Number of Positions 0
Mounting Type Free Hanging (In-Line)
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Voltage Rating 250V
Ultra Librarian 3D Model Ultra Librarian A-DF 09 LL/Z CAD Model

Description

The Assmann WSW Components D-Sub connector assemblies are reliable and versatile components used in various applications.

  • Voltage Rating: 250V
  • Connector Style: D-Sub
  • Shell Size: 1 (DE, E)
  • Mounting Type: Free Hanging (In-Line)
  • Product Status: Active
