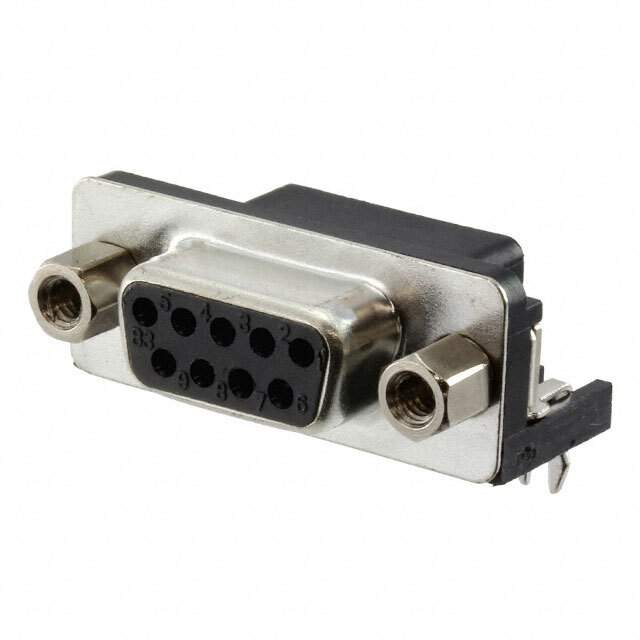

A-DF 09 A/KG-T2S Real Image
Same model may have multiple batches, images only for reference.

A-DF 09 A/KG-T2S

Part No A-DF 09 A/KG-T2S
Manufacturer Assmann WSW Components
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB RCPT 9POS R/A SLDR / 9 Position D-Sub Receptacle, Female Sockets Connector
Datasheet
A-DF 09 A/KG-T2S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub Connector Assemblies
Mfr Assmann WSW Components
Package Tray
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 9
Number of Rows 2
Mounting Type Through Hole, Right Angle
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Flange Feature Mating Side, Female Screwlock (4-40)
Termination Solder
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Contact Finish Thickness Flash
Material Flammability Rating UL94 V-0
Current Rating (Amps) 3A
Backset Spacing 0.319" (8.10mm)
Features Board Lock
Voltage Rating 250V
Color Black
Dielectric Material Polybutylene Terephthalate (PBT) , Glass Filled
Contact Material Copper Alloy
Temperature Range - Operating -55°C ~ 105°C
Base Product Number A-DF 09
Standard Package 90
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1337499-A-DF 09 A/KG-T2S
Ultra Librarian 3D Model Ultra Librarian A-DF 09 A/KG-T2S CAD Model

Description

This is a D-Sub connector assembly product from Assmann WSW Components.

  • Win Source Part Number: 1337499-A-DF 09 A/KG-T2S
  • Category: D-Sub, D-Shaped Connectors
  • Number of Positions: 9
  • Color: Black
  • Board Lock: Yes
  • Connector Type: Receptacle
  • Contact Gender: Female Sockets
  • Number of Rows: 2
  • Termination: Solder
  • Contact Finish: Gold
  • Contact Finish Thickness: Flash
  • Packaging: Tray
  • Contact Material: Copper Alloy
  • Voltage Rating: 250V
  • Shrouded: Yes - 4 Wall
  • Mounting Type: Through Hole, Right Angle
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS: 8536.69.4040
  • Base Product Number: A-DF 09
