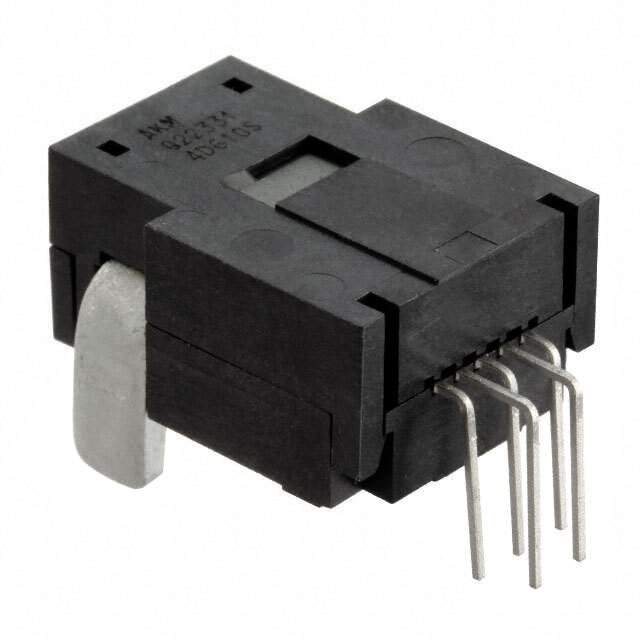

CQ2235

Get a Quote

Part No	CQ2235
Manufacturer	Asahi Kasei Microsystems
Catalog	Current Transducers
Description	SENSOR CURRENT HALL 50A AC/DC / Current Sensor 85A 1 Channel Hall Effect, Open Loop Bidirectional Module
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Sensors, Transducers>Current Sensors
Mfr	Asahi Kasei Microdevices/AKM
Series	CQ
Package	Tray
Product Status	Last Time Buy
For Measuring	AC/DC
Sensor Type	Hall Effect, Open Loop
Current - Sensing	85A
Number of Channels	1
Output	Ratiometric, Voltage
Sensitivity	15.5mV/A
Frequency	300kHz
Linearity	±1%
Accuracy	±1%
Voltage - Supply	2.7V ~ 3.63V
Response Time	1µs
Current - Supply (Max)	9.6mA
Temperature Range - Operating	-40°C ~ 150°C
Polarization	Bidirectional
Mounting Type	Through Hole
Package / Case	Module
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8542.39.0001
Other Names	974-1104-6INACTIVE,974-1104-1,974-1104-5,974-1104-2INACTIVATE,974-1104-2,CQ-2235,974-1104-1-ND,974-1104-2-ND,974-1104-6,974-1104-6-ND
Standard Package	1,000
Win Source Part Number	1018190-CQ2235
Ultra Librarian 3D Model	Ultra Librarian CQ2235 CAD Model

Description

The CQ2235 is a Hall Effect, Open Loop current sensor designed for measuring AC/DC current up to 85A. Bold the product name (e.g., BAV99S,135 → CQ2235) and manufacturer (e.g., Nexperia USA Inc. → N/A).

Type: Hall Effect, Open Loop Current Sensor
Current Measurement: Up to 85A AC/DC
Sensitivity: 15.5mV/A
Linearity: ±1%
Output: Ratiometric and Voltage-based
Frequency: 300kHz
Voltage Supply: 2.7V to 3.63V
Current Consumption: 9.6mA (Max)
Response Time: 1µs
Mounting Type: Through-Hole
Package/Case: Module
Operating Temperature: -40°C to 150°C
