AK09940A Asahi Kasei Microdevices/AKM
Same model may have multiple batches, images only for reference.

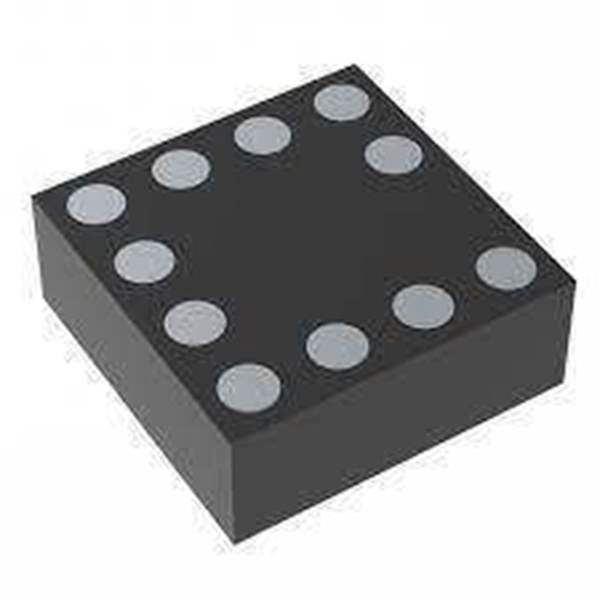

AK09940A

Part No AK09940A
Manufacturer Asahi Kasei Microsystems
Catalog Magnetic Sensors - Linear, Compass (ICs)
Description IC 3AXIS ELECT MAGNETOMETER 11LG
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1204003-AK09940A
Manufacturer Asahi Kasei Microdevices/AKM
Category Sensors, Transducers- Magnetic Sensors- Linear, Compass (ICs)
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Active
Technology Magnetoresistive
Output Type I²C, SPI
Sensing Range ±1.2mT
Voltage - Supply 1.7V ~ 1.98V
Current - Supply (Max) 800µA
Operating Temperature -30°C ~ 85°C
Ultra Librarian 3D Model Ultra Librarian AK09940A CAD Model

Description

The AK09940A is a 3-axis Electronic Magnetometer that uses TMR magnetic sensor elements to achieve world-class ultra-low noise performance.
The sensor element, signal processing circuit, AD converter, etc. are incorporated into an ultra-small package, and the measured magnetic vector is digitally output in 18-bits for each of the X, Y, and Z axes.
