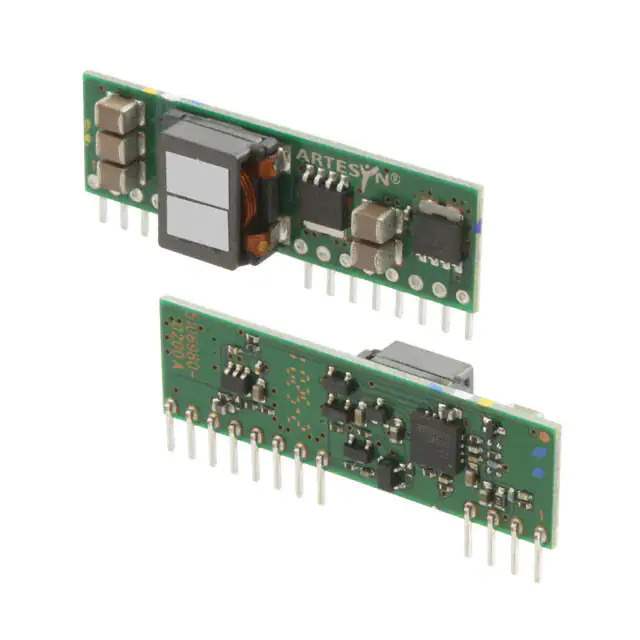

Same model may have multiple batches, images only for reference.

PTV12020WAD

Name: PTV12020WAD
Brand: Artesyn Embedded Technologies
SKU: 658021
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	PTV12020WAD
Manufacturer	Artesyn Embedded Technologies
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 1.2-5.5V 88W
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Artesyn Embedded Technologies
Series	PTV12020 (88W)
Package	Tray
Product Status	Active
Type	Non-Isolated PoL Module
Number of Outputs	1
Voltage - Input (Min)	10.8V
Voltage - Input (Max)	13.2V
Voltage - Output 1	1.2 ~ 5.5V
Current - Output (Max)	16A
Power (Watts)	88 W
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OTP, UVLO
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	94%
Mounting Type	Through Hole
Package / Case	12-SIP Module
Size / Dimension	1.75" L x 0.37" W x 0.50" H (44.5mm x 9.4mm x 12.7mm)
Base Product Number	PTV12020
Standard Package	84 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	658021-PTV12020WAD
Ultra Librarian 3D Model	Ultra Librarian PTV12020WAD CAD Model

Alternative Products

Description

The PTV12020WAD is a non-isolated PoL module from Artesyn Embedded Technologies.

Series: PTV12020
Power Output: 88W
Mounting Category: Board Mount
Size: 1.75" L x 0.37" W x 0.50" H
Maximum Output Current: 16A
Input Voltage: 10.8V to 13.2V
Output Voltage: 1.2V to 5.5V
Features: Remote On/Off, Over Current Protection (OCP), Over Temperature Protection (OTP), and Under Voltage Lockout (UVLO)
Efficiency: 94%
Mounting Type: Through-Hole
Package: 12-SIP
Application: ITE (Commercial)
Standard Package: 84 pieces
Product Status: Active
