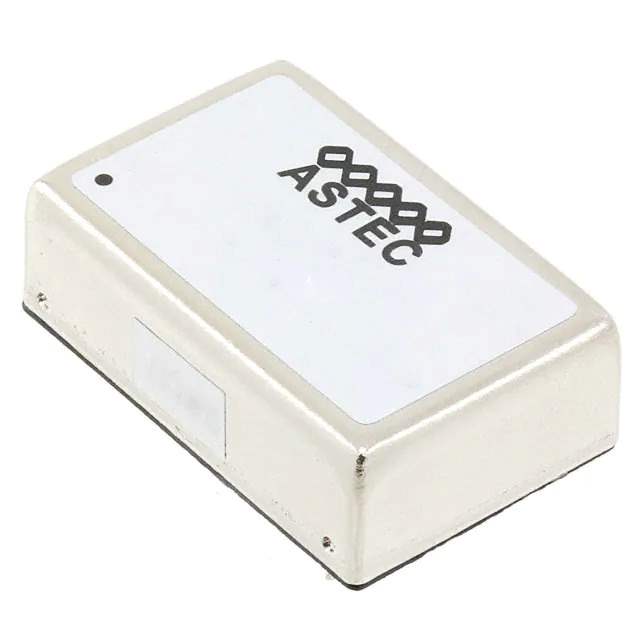

Same model may have multiple batches, images only for reference.

ASA03F24-L

Name: ASA03F24-L
Brand: Artesyn Embedded Technologies
SKU: 564918
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	ASA03F24-L
Manufacturer	Artesyn Embedded Technologies
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 3.3V 10W / Isolated Module DC DC Converter 1 Output 3.3V 3A 18V - 36V Input
Datasheet	ASA03F24-L Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Artesyn Embedded Technologies
Series	ASA (10W)
Package	Tube
Product Status	Obsolete
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	18V
Voltage - Input (Max)	36V
Voltage - Output 1	3.3V
Current - Output (Max)	3A
Power (Watts)	10 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	SCP
Temperature Range - Operating	-40°C ~ 60°C
Efficiency	83%
Mounting Type	Through Hole
Package / Case	8-DIP Module
Size / Dimension	1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Standard Package	200 pcs
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	564918-ASA03F24-L
Ultra Librarian 3D Model	Ultra Librarian ASA03F24-L CAD Model

Alternative Products

Description

The ASA03F24-L is an isolated module from Artesyn Embedded Technologies.

Series: ASA series
Power Rating: 10W
Maximum Output Current: 3A
Input Voltage Range: 18V to 36V
Output Voltage: 3.3V
Protection: short circuit protection (SCP)
Mounting: through-hole
Package: 8-DIP module package
Application: ITE (Commercial)
Operating Temperature Range: -40°C to 60°C
Note: This product is now obsolete
