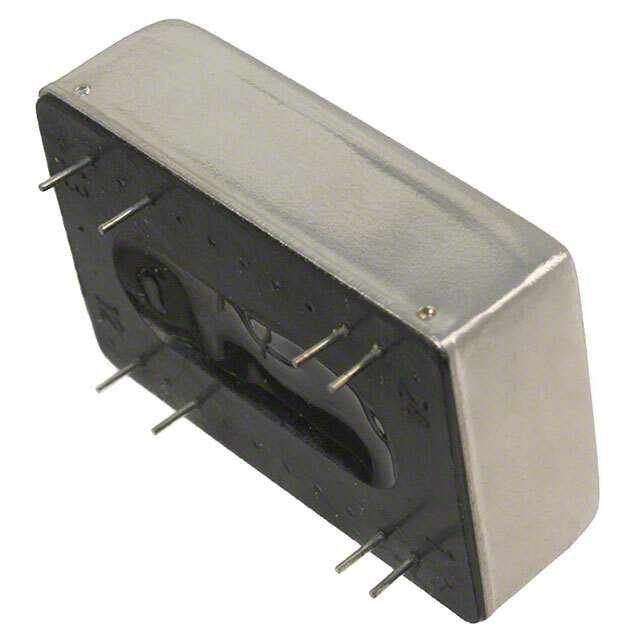

Same model may have multiple batches, images only for reference.

ASA01A36-L

Get a Quote

Part No	ASA01A36-L
Manufacturer	Artesyn Embedded Technologies
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V 6W / Isolated Module DC DC Converter 1 Output 5V 1A 18V - 75V Input
Datasheet	ASA01A36-L Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Artesyn Embedded Power
Packaging	Tube
Product Status	Obsolete
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	18V
Voltage - Input (Max)	75V
Voltage - Output 1	5V
Current - Output (Max)	1A
Power (Watts)	6 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	SCP
Temperature Range - Operating	-40°C ~ 71°C
Efficiency	81%
Mounting	Through Hole
Case / Package	8-DIP Module
Size / Dimension	1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	ASA01A36L,ASA01A36-L-ND,-ASA01A36-L,454-1450
Standard Package	200
Win Source Part Number	1335125-ASA01A36-L
Ultra Librarian 3D Model	Ultra Librarian ASA01A36-L CAD Model

Alternative Products

Description

The Artesyn Embedded Power ASA01A36-L is an isolated module DC-DC converter that comes in a 8-DIP module package.

Package: 8-DIP module package
Power: 6W
Voltage Isolation: 1.5 kV
Maximum Output Current: 1A
Voltage Input Range: 18V to 75V
Efficiency: 81%
Application: ITE (Commercial)
Temperature Range: -40 degrees Celsius and 71 degrees Celsius
Status: Obsolete
