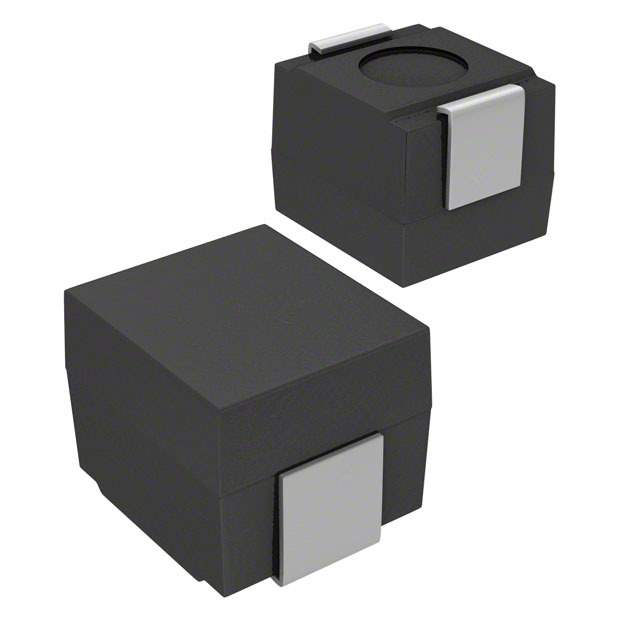

Same model may have multiple batches, images only for reference.

S1008-103J

Name: S1008-103J
Brand: API Delevan Inc.
SKU: 996173
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	S1008-103J
Manufacturer	API Delevan Inc.
Catalog	Fixed Inductors
Description	FIXED IND 10UH 230MA 2.1 OHM SMD / 10 µH Shielded Inductor 230 mA 2.1Ohm Max 1008 (2520 Metric)
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	API Delevan Inc.
Series	S1008
Package	Tape & Reel (TR)
Material - Core	Ferrite
Inductance	10 µH
Tolerance	±5%
Current Rating (Amps)	230 mA
Shielding	Shielded
DC Resistance (DCR)	2.1Ohm Max
Q @ Freq	30 @ 7.9MHz
Frequency - Self Resonant	29MHz
Temperature Range - Operating	-55°C ~ 125°C
Inductance Frequency - Test	7.9 MHz
Mounting	SMD (SMT)
Package / Case	1008 (2520 Metric)
Supplier Device Package	1008 (2520 Metric)
Dimension	0.115" L x 0.105" W (2.92mm x 2.66mm)
Height - Seated (Max)	0.095" (2.41mm)
RoHS Status	RoHS non-compliant
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Other Names	S1008-103J-ND,S1008-103JCT,S1008-103JDKR,S1008-103JTR,S1008-103J TR 500
Standard Package	500
Win Source Part Number	996173-S1008-103J
Ultra Librarian 3D Model	Ultra Librarian S1008-103J CAD Model

Alternative Products

Description

API Delevan Inc. presents a high-quality shielded fixed inductor with an inductance of 10 µH.

Height: 0.095" (2.41mm)
Mounting: SMD (SMT)
Tolerance: ±5%
Core Material: Ferrite
Q @ Freq: 30 @ 7.9MHz
Self-Resonant Frequency: 29MHz
DC Resistance (DCR): 2.1Ohm (Max)
Operating Temperature Range: -55°C ~ 125°C
Packaging Type: Tape & Reel (TR)
Category: Inductors, Coils, and Chokes
